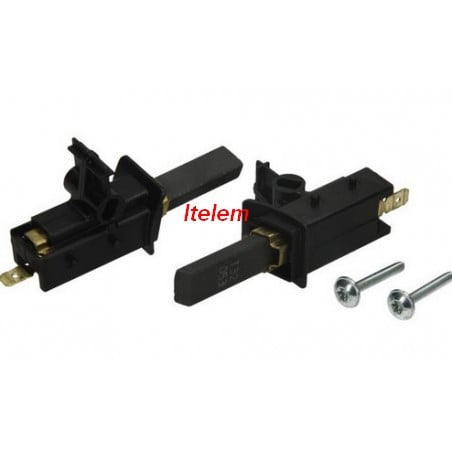

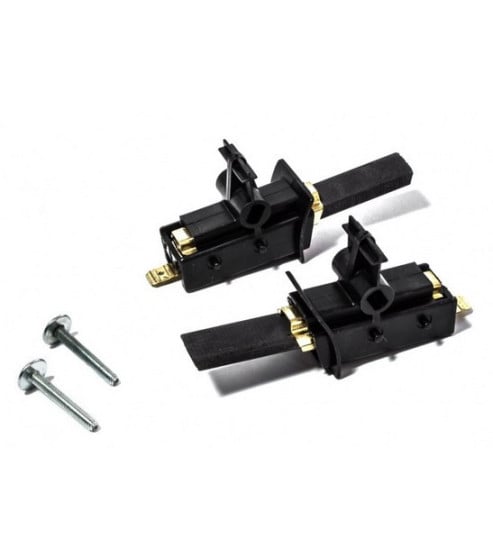

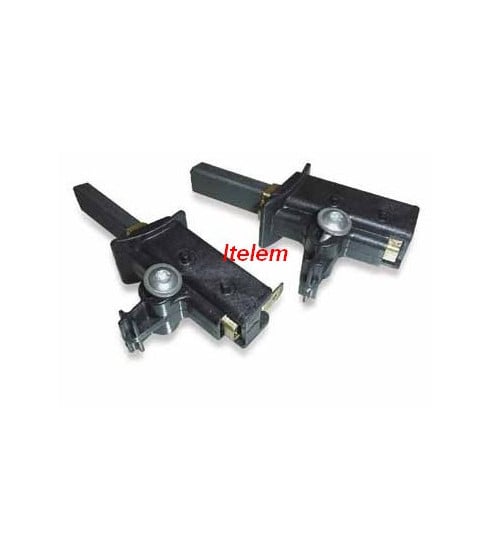

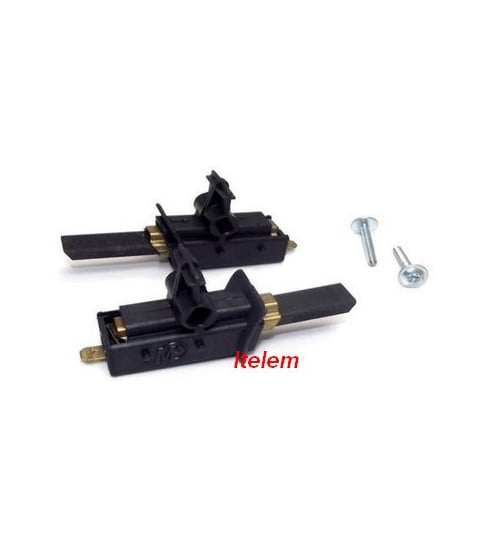

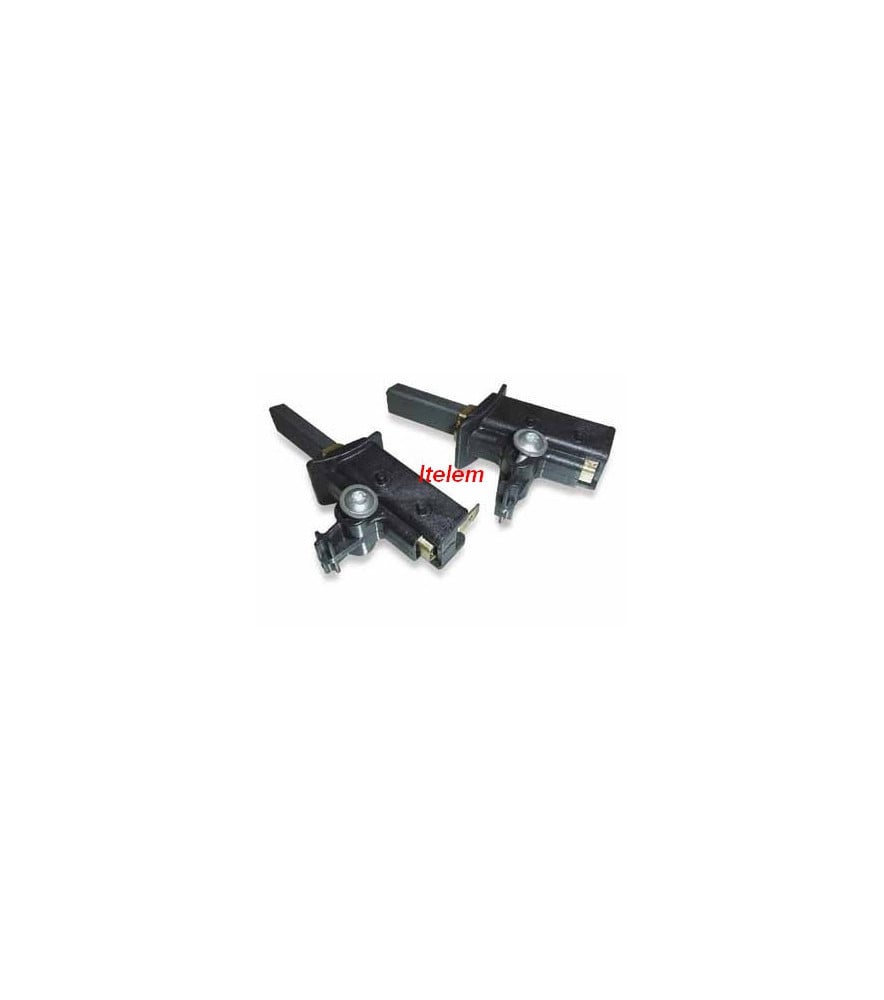

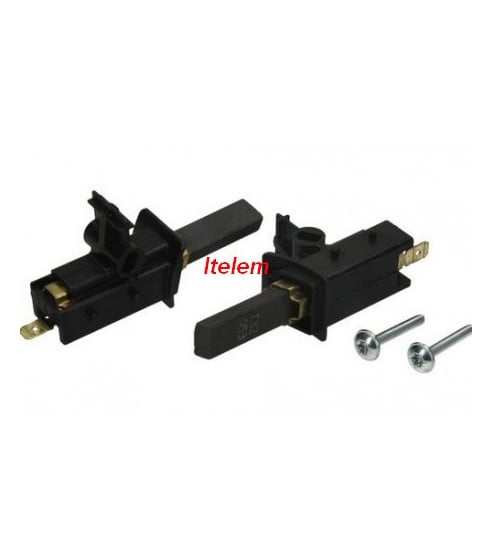

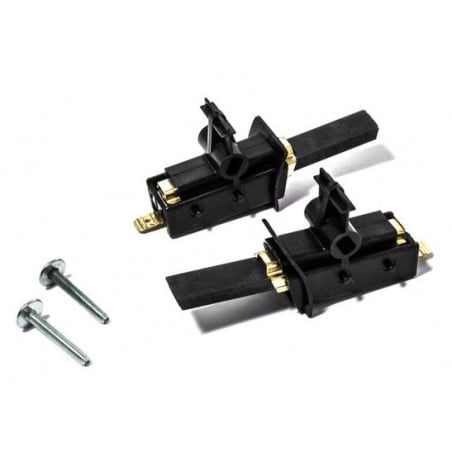

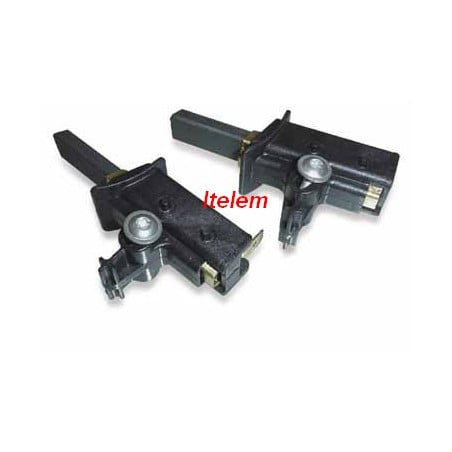

Charbons moteur Selni lave-linge Brandt Vedette

Les charbons moteur Selni référence d'origine constructeur 52X5258 sont montés sur les moteurs embarqués dans les lave-linge top du groupe Brandt et ses marques associées.

Fonctionnalités :

• Alimenter en courant électrique la partie rotative du moteur par frottement
• Assurent le passage de l'électricité jusqu'au rotor
• Composés de graphite, un matériau conducteur

Symptômes en cas de panne :

• Le moteur ne démarre pas ou tourne difficilement
• Fonctionnement irrégulier ou aléatoire de l'appareil
• Bruits anormaux ou crépitements pendant le fonctionnement
• Étincelles importantes et visibles au niveau du moteur
• Diminution des performances de lavage l'appareil
• Arrêts intempestifs de l'appareil, saccades moteur

• Usure visible, traces d'échauffement, déformation ou casse des charbons
• Rotation tambour erratiques, essorage fonctionnel, pas le lavage

Autres références: 55X7542, 51X9266, 52X2612, 51X9121, 55X2822, 52X2613, 481281718792, 482000030263, C00377913, C00196541.

Conseil technique:

Les charbons moteur sont des composants sujets à l'usure. Leur durée de vie est directement liée à l'intensité d'utilisation du moteur, comme des cycles de lavage fréquents ou des essorages à haute vitesse. Leur remplacement est économiquement avantageux en raison de leur faible coût, et c'est une opération généralement accessible aux bricoleurs amateurs. En cas d'usure importante, il est recommandé de nettoyer le moteur en soufflant la poussière accumulée. Nous proposons un tutoriel complet de dépannage sur les charbons moteur rédigé par notre technicien. Toujours remplacer les charbons par paire.

Liste d’appareils concernés (Non exhaustive)
-Information à relever sur la plaque signalétique située sur le tour de porte, derrière la trappe de pompe de vidange ou au dos du lave-linge.

1FET-110-X/01 1FET-210-X/01 1FET-211-X/01 1FET-211W-X/02 1FET-213-X/01 1FET-311-X/01 1FET-313-X/01 1FET-313W-X/02 1FT-211-E/01 1FT-311-E/01 1FT-311-E/02 1FT-313-E/01 1FT-313-E/02 1FT-313-E/03 211W 3TL951A/01 3TL951A/03 3TL951A/04 3TL951A/05 3TL951B/10 3TL961A/01 3TL961A/03 3TL961A/05 4TL750A/01 4TL750A/03 4TL750A/04 4TL750A/05 4TL750B/01 ALT1005W-F/01 ALT1205W-F/01 BT12699-J/01 CA103E-I/02 CA103E-I/03 CA103EW-X/01 CLT513-F/01 CWT10R10/01 CWT10R10/03 ELT512D1-F/02 ELT512D1-F/03 ELT512D2-F/01 ELT512D3-F/01 ELT612D1-F/01 FET-3106-X/01 FET-3126-X/01 FFT-100W/01 FFT-105W-X/01 FFT-110-F/01 FFT-1106-M/01 FFT-110W-F/02 FFT-111-F/01 FFT-111-F/02 FFT-111W-F/03 FFT-1126-M/01 FFT-113W-F/01 FFT-208W-F/01 FFT-208W-F/03 FFT-211-F/01 FFT-211W-F/01 FFT-212-F/01 FFT-212-F/02 FFT-213-F/01 FFT-213-F/02 FFT-411-F/01 FFT-413-F/01 FGT-313-D/01 FLT-610-X/01 FLT-612-X/01 FT-3106N-E/01 FT-3116-E/01 FT-3136-E/01 HPTPK1105-S/01 HPTPK1105-S/02 HPTPK1305-S/01 HPTPK1305-S/02 LT-208-E/03 LT-310-E/01 LT-310W-E/03 LT-326CE-E/01 LT-412-E/01 LT-412W-E/03 LT-5610P-E/01 LT-7610S-E/01 LT1005FP-F/01 LT1006-E/01 LT1226-E/01 LT1226-E/01 MWT1-508/01 MWT1-510/01 PTD-103-P/01 PTD-1036-P/01 PTD-116-P/01 PTD-116ECO-P/01 PTD-123-P/01 PTD-1236-P/01 PTD-136-P/01 PTD-2036-P/01 PTD-236ECO/01 PTD-96-P/01 PTE-103-P/01 PTE-1030-P/01 PTE-1030W/04 PTE-1036-P/01 PTE-103W/03 PTE-1040-P/04 PTE-104P/04 PTE-116-P/01 PTE-124-P/03 PTE-136-P/01 PTE-2036-P/01 PTE-96-P/01 PW1150TL-F/01 PW1150TSP-X/01 PWM1150TL-F/01 ROMANLT1226 SGT3100-I/02 SGT3100-I/03 SGT8080-I/02 SGT8080-I/03 SGT8120-I/01 SGT8120-I/02 SGT8120-I/03 ST1108V-F/01 TL1011-J/01 TL1011-J/02 TL1199-J/01 TL1199-J/02 TO1200EB-F/01 TO1200EB-F/02 TO1300FB-F/01 TO6200FB-F/01 TT42-X/01 TT42-X/02 TT61-X/01 TT61-X/02 TT63-X/01 TT63-X/02 TX938-A/01 TX938-A/02 TX938N-A/01 TX938N-A/02 VLT4100-F/01 VLT4100-F/02 VLT4108-F/01 VLT4108-F/02 VLT4122-F/01 VLT4122-F/02 VLT5122-F/01 VLT5122-F/02 WAT1220-X/01 WAT1300-X/01 WAT1300-X/02 WAT1320-X/01 WAT1320-X/02 WAT1530-X/01 WAT1530-X/02 WOR20150BY/01 WOR20150BY/03 WOR20150OE/01 WOR20150OE/03 WOR20150PL/01 Itelem WOR20150SN/01 WOR20150SN/03 WOT20350/01 WOT20350/03 WOT20350/05 WOT20350EE/01 WOT20350EE/03 WOT20350EE/04 WOT20350EE/05 WOT20350FF/01 WOT20350FF/03 WOT20350FF/04 WOT20350FF/05 WOT20351/01 WOT20351/06 WOT20351FF/01 WOT20351FF/06 WOT20351OE/06 WOT20352-D/01 WOT20352FF/01 WOT20352OE/01 WOT20380/01 WOT20380/03 WOT20380/04 WOT20380/05 WOT20381/01 WOT20381/06 WOT20382-D/01 WOT203Y0/01 WOT203Y0/04 WOT203Y0/05 WOT203Y1/01 WOT203Y1/06 WOT20520IT/01 WOT20520IT/03 WOT20520IT/05 WOT20521IT/01 WOT20522IT/01 WOT20540/01 WOT20540/03 WOT20540/05 WOT20541/01 WOT20541/06 WOT20542-D/01 WOT20542-D/10 WOT20550FF/01 WOT20550FF/03 WOT20550FF/04 WOT20551FF/01 WOT20551FF/06 WOT22350SN/01 WOT22350SN/03 WOT22350SN/05 WOT22350SN/06 WOT22590/01 WOT22590/03 WOT22590/04 WOT22590/05 WOT22591/01 WOT22591/06 WOT22592-D/01 WOT22592-D/10 WOT24320NL/01 WOT24320NL/03 WOT24320NL/04 WOT24320NL/05 WOT24350/01 WOT24350/03 WOT24350/05 WOT24350EE/01 WOT24350EE/03 WOT24350EE/04 WOT24350EE/05 WOT24350FF/01 WOT24350FF/03 WOT24350FF/04 WOT24350SN/01 WOT24350SN/03 WOT24350SN/04 WOT24350SN/05 WOT24350SN/06 WOT24351/01 WOT24351/06 WOT24351FF/01 WOT24351FF/06 WOT24351FN/01 WOT24351FN/08 WOT24351NL/01 WOT24351NL/07 WOT24351NL/08 WOT24352-D/01 WOT24352FF/01 WOT24380NL/01 WOT24380NL/03 WOT24380NL/04 WOT24380NL/05 WOT24381NL/01 WOT24381NL/07 WOT24381NL/08 WOT24520FF/01 WOT24520FF/03 WOT24520FF/04 WOT24520FF/05 WOT24521FF/01 WOT24521FF/06 WOT24540/01 WOT24540/03 WOT24540/04 WOT24540/05 WOT24541/01 WOT24541/06 WOT24542-D/01 WOT24542-D/10 WOT24550EE/01 WOT24550EE/03 WOT24550EE/05 WOT24550OE/01 WOT24550OE/03 WOT24550OE/04 WOT24550OE/05 WOT24551EE/01 WOT24551EE/08 WOT24551OE/01 WOT24551OE/06 WOT24552FF/01 WOT24552OE/01 WOT26520FF/01 WOT26520FF/03 WOT26520FF/04 WOT26521FF/01 WOT26521FF/06 WOT26540NL/01 WOT26541NL/01 WOT26541NL/07 WOT26542NL/01 WOT26550SN/01 WOT26550SN/03 WOT26550SN/05 WOT26550SN/06 WOT26551FN/01 WOT26552FF/01 WOT26552FN/01 WOT26590/01 WOT26590/03 WOT26590/04 WOT26590/05 WOT26590NL/01 WOT26590NL/03 WOT26590NL/04 WOT26590NL/05 WOT26591/01 WOT26591/06 WOT26591NL/01 WOT26591NL/07 WOT26592-D/01 WOT26592-D/10 WOT26592NL/01 WOT26592NL/10 WP09R150EE/01 WP09R150EE/03 WP10R150BY/01 WP10R150BY/03 WP10R150PL/01 WP10R150PL/03 WP10R150SN/01 Pieces-tout-electromenager WP10R150SN/03 WP10T320IT/01 WP10T320IT/03 WP10T320IT/04 WP10T320IT/05 WP10T321IT/01 WP10T350/01 WP10T350/03 WP10T350/04 WP10T350/05 WP10T351/06 WP10T351BY/01 WP10T351BY/06 WP10T352-D/01 WP10T352-D/10 WP10T352BY/01 WP10T380/01 WP10T380/03 WP10T380/05 WP10T380FF/01 WP10T380FF/03 WP10T380FF/04 WP10T381/01 WP10T381/06 WP10T381FF/01 WP10T381FF/06 WP10T382-D/01 WP10T382FF/01 WP10T3S0/01 WP10T3S0/05 WP10T3S1/01 WP10T3S1/06 WP10T520IT/01 WP10T540/01 WP10T540/03 WP10T540/05 WP10T541/01 WP10T541/06 WP10T542-D/01 WP10T542-D/10 WP10T580FF/01 WP10T580FF/03 WP10T580FF/04 WP10T581FF/01 WP10T581FF/06 WP11T350EE/01 WP11T350EE/03 WP11T350EE/04 WP11T350EE/05 WP11T350SN/01 WP11T350SN/03 WP11T350SN/05 WP11T350SN/06 WP11T351EE/01 WP11T351EE/08 WP11T590/01 WP11T590/03 WP11T590/04 WP11T590/05 WP11T591/01 WP11T591/06 WP11T592-D/01 WP11T592-D/10 WP12T320NL/01 WP12T320NL/03 WP12T320NL/04 WP12T320NL/05 WP12T321NL/01 WP12T321NL/07 WP12T321NL/08 WP12T350/01 WP12T350/03 WP12T350/04 WP12T350/05 WP12T350BY/01 WP12T350BY/03 WP12T350SN/01 WP12T350SN/03 WP12T350SN/04 WP12T350SN/05 WP12T350SN/06 WP12T351/01 WP12T351/06 WP12T351FN/01 WP12T351FN/08 WP12T352-D/01 WP12T380/01 WP12T380/03 WP12T380/04 WP12T380/05 WP12T380FF/01 WP12T380FF/03 WP12T380FF/04 WP12T380FF/05 WP12T381/01 WP12T381/06 WP12T381FF/01 WP12T381FF/06 WP12T382-D/01 WP12T382FF/01 WP12T520IT/01 WP12T520IT/03 WP12T520IT/04 WP12T520IT/05 WP12T521IT/01 WP12T522IT/01 WP12T540/01 WP12T540/03 WP12T540/04 WP12T540/05 WP12T541/01 WP12T541/06 WP12T542-D/01 WP12T542-D/10 WP12T550BY/01 WP12T582FF/01 WP12T590FF/01 WP12T590FF/03 WP12T590FF/04 WP12T590FF/05 WP12T5910FF/01 WP12T591FF/06 WP13T350BY/01 WP13T350BY/05 WP13T350EE/01 WP13T350EE/03 WP13T350EE/05 WP13T351BY/01 WP13T351BY/06 WP13T352BY/01

Autres modèles

925110595 FFT-110W 925110602 FFT-111W 925110611 FFT-212W 925110620 FFT-213W 925110639 FFT-411W 925110648 FFT-413W 925110675 1FET-110W 925110684 1FET-210W 925110693 1FET- 925110700 1FET-213W 925110719 1FET-311W 925110728 1FET-313W 925470250 PTE-1030W 925470278 PTE-103W 925470287 PTD-103W 925470296 PTD-123W 925470394 PW1150TLW 925690174 WTC1064EW

Autres modèles

1000BLE/EF 1000PAF/FF 6B3ATHEXA 6D3ATHEXA 6F3ATHEXB 1100PAD/DF 1100PAF/FF 1101PAD/DF 1150WMTD/D 1150WMTD/E 1150WMTE/F 1151WMTD/D 1151WMTE/E 6B1ATHEXA 6D1ATHEXA 1FET-116-D/DX 1FET-76-D/DX 1FET-96-D/DX 1FT-116-D/DE 1FT-76-D/DE 1FT-96-D/DE 1LT-63-D/DE 1LT-86-D/DE 202BD/DF 2FET-106-XD/D 2FET-106-XE/E 2FET-116-XD/D 2FET-116-XE/E 2FET-116-XF/F 2FET-76-XD/D 2FET-76-XE/E 2FET-76-XF/F 2FET-86-XD/D 2FET-86-XE/E 2FET-96-XD/D 2FET-96-XE/E 2FET-96-XF/F 2FT-76-ED/D 2FT-76-EE/E 2FT-76-EF/F 2FT-96-ED/D 2FT-96-EE/E 2LT-63-ED/D 2LT-63-EE/E 2LT-63-EF/F 2LT-86-ED/D 2LT-86-EE/E 2LT-86-EF/F 5005D/DJ 5005F/FJ 5005G/GJ 5009D/DJ 5009E/EJ 6G1BQEDDA 633CRD/DF 633CRE/EF 656TD/DF 723BLE/EF 723BLF/FF 723BLG/GF 73CVRD/DF 73CVRE/EF 7575A/AF 7576B/AF 7599BBSCD/D 7599BBSCE/E 779VXBA/AF 802CVE/EF 802CVF/FF 802CVG/GF 803CVRE/EF 805TVD/DF 805TVF/FF 805TVG/GF 815TVCE/EF 833BLD/DF 833BLE/EF 845BLE/EF 845BLF/FF 855TVAD/EF 855TVAE/FF 855TVAE/GF 856TVAD/DF 8599SCA/AF 8599BBSCA/AF 900CAD/DF 900PAD/DF 900PAE/EF 900PAG/GF 900WMTD/D 900WMTD/E 901CAD/DF 901CAE/EF 901WMTD/D 910P-D/DF 977VXED/D 977VXED/D 999TDS/FR A100D/DF A70D/DF A71BD/DF A72BD/DF A73BD/DF A74D/DF A75D/DF A76D/DF A78D/DF A80D/DF A800TD/DK A85D/DF A86D/DF A87D/DF AC1000D/DF AC1000E/EF AC1100D/DF AC1100E/EF AC11SPE/EF AC70TD/DF AC72TD/DF AC74D/DF AC74E/EF AC74F/FF AC75D/DF AC75E/EF AC75F/FF AC75G/GF AC76D/DF AC76E/EF AC76F/FF AC83D/DF AC83D/DX AC83E/EF AC83E/EX AC83F/FF AC850D/DF AC850F/FF AC90D/DF AC905ED/DF AC97D/DF AC97E/EF ACCESS110E/FF ACCESS100E/EF ACCESS100E/FF ACCESS110D/DF ACCESS110E/EF ACCESS90E/EF ACCESS90E/FF ACS1000TD/D ACS1000TE/E ACS1000TYD/D ACS1100TD/D ACS1100TE/E ACS1100TYD/D ACS900TD/D ACS900TE/E ACS900TYD/D AJ1000TD/D AJ60D/DF AJ60E/EF AJ600TD/DF AJ65D/DF AJ65E/EF AJ650TD/DF AJ70D/DF AJ70E/EF AJ73D/DF AJ73E/EF AJ75TSD/DF AJ80D/DF AJ80E/EF AJ800TD/DF AJ807TD/DF AJ810TSD/D AMICA80D/DI AMICA85D/DI AMICA85ND/DI AMICA86AD/DI AP1000D/DF AP1000E/EF AP1100D/DF AP1100E/EF AP851D/DF AP900D/DF AP900E/EF AP952D/DF AP952E/EF AP952E/EX AR850PB/B AS750D/DF AS760D/DF 6F1BTHFFC 6F1BTHFFA 6A1BTHFF1 6A1ATHFF1 6D1BTHFFA 6D1BTHFFD 6D1BTHFFE 6D1BTHFFB 6A1BTHFF2 6F1BTHFFB 6F1BTHFFD 6F1BTHFFF 6F1ATHFFC 6A1ATHFF2 6D1ATHFFA 6D1ATHFFC 6F1ATHFFA 6D1ATHFFD 6D1ATHFFB 6F1ATHFFD 6F1ATHFFB 1000PAE/EF 1100PAE/EF 1000PAD/DF B71TD/DK B71TE/EK 802CVD/DF B850TD/DK 855TVAD/DF B91TD/DK BA113BD/DA 6G3FBGDDB 6E3FBGDDB 6E3FBGILA 6E3EBGDDB 6E3EBGILA 6E3FBGDDA 6G3FBGDDA 6E3EBGDDA 6E1GBGDDA BL1100AA-FD/D BL1100AA-FE/E BM6002JD/D BM7001JD/D BM7001N-JD/D BM7002JD/D BM7002N-JD/D BM7005-JD/D BM8005JD/D BM8006-JE/E BM8006JD/D BM9005JD/D BM9900JD/D BR1000D/DA BR1000MD/D BR1000ME/E BR600M-E/EA BR600MD/DA BR730D/DA BR730ME/EA BR730MF/FA BR750D/DA BR750M-F/FA BR750ME/EA BR809D/DA BR850D/DA BR850MD/DA BR959D/DA 6G3BSOIIC 6F3CBRSGA 6F3CBRSGB 6D3CBRSGB 6D3CBRSGC 6B3CBRSGB 6B3CBRSGB C102B0D/DJ C1104E-XD/D C1104E-XE/E C1304D-XD/D C1304D-XE/E CA1000D/DR CA1000E/ER CA53EW-I/02 CA53EW/01 CA600E/FI CA600E/FX CA600ARGD/D CA600ED/D CA600EE/E CA600EF/F CA605D/DI CA605E/EI CA623D/DI CA623XD/D CA623N-ID/D CA623N-IE/E CA623N-XD/D CA623N-XE/E CA800-RG/G CA800D/DR CA800E/ER CA800F/FR CA834D/DI CA834XD/D CA834N-ID/D CA834N-IE/E CA834N-XD/D CA834N-XE/E CA900TVD/D 6F3BVESGA 6F3BVESGA 6F3BVESGB 6D3BVESGA 6D3BVESGA CS801D/DE CS801D/EE CS801F/GE CVA800D/DF CVA1000D/D CVA1000D/E CVA800D/EF CVA850E/FF CVA900D/DF CVA900D/EF CVA910SD/D 803CVRD/DF 6A3BQEDDA 6A1AQEDDA 6A1AQEDDB 6F3BQEDDB EG1071PE/E EG1075EE/E EG1082E/EF EG1085EE/E EG1088PE/E EG1089E/EF EG1089BDD/D EG1090D/DF EG1090BDD/D EG1091D/EF EG1092D/DF EG1092YD/D EG1093D/DF EG1094D/DF EG1094E/EF EG1095D/DF EG1095E/EF EG1095E/FF EG1098D/DF EG1098D/EF EG1099D/DF EG1099E/EF EG1099G/GF EG109ED/DF EG109PD/DF EG1189E/EF EG1193D/DF EG1193F/FF 6A3CVEFFA 6B3CVEFFA 6D3CVEFFA 6D3CVEFFB 6D3CVEFFC EG6001D/DF EG6001D/EF EG6001G/IF EG6001G/JF EG6001H/KF EG6001J/LF EG6001BDE/E EG6001BDE/F EG6001BDF/G EG6002D/DF EG6002E/EF EG6003D/DF EG6003E/EF EG6003F/FF EG6003BDD/D EG6003BDE/E EG600ED/DF EG6091D/DF EG6091D/EF EG6091G/IF EG6091G/JF EG6093D/DF EG6098D/DF EG6098D/EF EG6098G/IF EG6098G/JF EG60BD/DF EG60BD/EF EG60BG/IF EG60BG/JF EG60BH/KF EG7003E/EF EG700BD/DF EG7015ED/D EG7015EE/E EG7203D/DF EG7205D/DF EG720ED/DF EG7211D/DF EG7211E/EF EG7211F/FF EG7211G/GF EG7225ED/D EG7225EE/E EG7225EF/F EG7293D/DF EG72BD/DF EG72CAD/DF EG72CAE/EF EG7501D/DF EG7501D/EF EG7501E/GF EG7501F/HF EG7501BDE/E EG7501BDE/F EG7501BDF/G EG7502D/DF EG7502E/EF EG7504D/DF EG7504D/EF EG7505D/DF EG7508D/EF EG7508E/GF EG7508F/HF EG7591D/DF EG7591D/EF EG7592D/DF EG7592E/EF EG7593D/DF EG7595D/DF EG7598D/EF EG7599D/DF EG77AD/DF EG8003D/DF EG8011D/DF EG8081E/EF EG8081F/FF EG8083D/DF EG8083E/EF EG8093D/DF EG8095D/DF EG8310D/DF EG8310E/EF EG8582D/DF EG8582E/EF EG9003D/DF EG905ED/DF EG905ED/EF EG905ED/FF EG905EYD/D EG9091D/EF EG9092D/DF EG9092YD/D EG9093D/DF EG9093E/EF EG9093BDD/D EG9094D/DF EG9094D/EF EG9100PD/E EG9100PD/FF EG9100PYD/D EG9300PD/DF EG995ED/DF EXL900D/DCH EXL900D/ECH 6F3CFOEEA 6F3CFOEEB 6D3CFOEEA 6B3CFOEEA F160TD/DF F160TE/EF F160TF/FF F160TG/GF F160TH/HF F164TD/DF 6G3BSOIIE 6G3BSOIIG 6G3BSOIIB 6E3BSOIIB 6C1BTHFFA 6G3BTHEEA 6G3BTHEEA 6G3BTHEEB 6C3BTHFFB 6C1BTHFFB 6E1BTHFFB 6G1BTHFFB 6G1BTHFFC 6G1BTHFFA 6E1BTHFFC 6C1BTHFFC FB165TD/DF FET-309-XD/D FET-309-XE/E FET-309-XF/F FET-3106D-X/01 FET-311-XD/D FET-311-XE/E FET-311-XF/F FET-313-XE/E FET-313-XED/D FET-313-XF/F FET-313-XG/G FFT-106-FD/D FFT-106-FE/E FFT-116-FD/D FFT-116-FE/E FFT-126-FD/D FFT-309-FD/D FFT-309-FE/E FFT-309-FF/F FFT-311-FD/D FFT-311-FE/E FFT-311-FF/F FFT-313-FD/D FFT-313-FE/E FFT-313-FF/F FFT-76-FD/D FFT-76-FE/E FFT-96-FD/D FFT-96-FE/E FT-309-ED/D FT-309-EE/E FT-309-EF/F FT-3106D-E/01 FT-311-ED/D FT-311-EE/E FT-311-EF/F FT-411-E/01 FT-413-E/01 6F3BSOIIB 6F3BSOIIC 6D3BSOIIA 6B3BSOIIA GRANAT1000D/ HA-1000NF-HD/ HA-1000NF-HE/ HA-800NF-HD/ HA-800NF-HE/ HYBRID120-JL/ L600TD/DF L600TD/EF L700CD/DF L700CD/EF L700TD/DF L700TD/EF L703CD/DF L703CD/EF L753TD/DF L753TD/EF L755TSE/EF L853CRD/DF L854TD/DF L854TE/EF L855D/DF L856D/DF L864TCD/DF L883TRD/DF L883TRE/EF L884TRD/DF LA1000TD/D LA1000TPD/D LA1000TPE/E LA1000TPF/F LA1003TD/D LA1003TE/E LA1100TE/E LA1100TD/D LA363CS-D/DE LA383CS-ED/D LA383CS-EE/E LA8500TD/D LA851TD/DF LA851TE/EF LA9000TD/D LA9000TF/F LC753D/DF LC755D/DF LC850D/DF LD7023D/DE LD7023E/EE ITELEM LD7033D/DE LD7033E/EE LD7034D/DE LGV702D/DK LGV702E/EK LGV851D/DK LGV902D/DK LL1100TVD/D LL1100TVE/E LL1100TVF/F LL1100TVH/H LL851D/DFI LL900TVD/D LL900TVE/E 6C3BTHFFA 6C3BTHFFA 6E3BTHFFA 6E3BTHFFA 6D1ATHCHA 6D1ATHCHB 6D1ATHCHC 6B1ATHCHA LT-208-ED/D LT-208-EF/F LT-210-ED/D LT-210-EF/F LT-210-EG/G LT-210-EH/H LT700D/DF M1000ELTID/D M1000ELTIE/E M1000INTID/D M1000INTIE/E M1200INTID/D M1200INTIE/E M700ID/D M700ELTID/D M700ELTIE/E M800DGTID/D M800DGTIE/E M800ELTID/D M800ELTIE/E MAL100D/DI MAL100E/EI MALICE100ND/DI MALICE100NE/EI MALICE101ND/D MALICE110ND/D MAL60D/DX MAL60E/EI MALICE60ND/DI MALICE60ND/DX MALICE60NE/EI MALICE60NE/EX MAL70E/EI MALICE70ND/DI MALICE70NE/EI MAL80D/DI MALICE80ND/DI MALICE81ND/DI MAL90D/DI MAL90D/DX MALICE90ND/DI ML1100D/DCH ML1100D/ECH ML1100E/FCH ML1100F/GCH ML1100G/HCH MWT1-E610/01 MWT1-E612/01 MWT2-E610/01 MWT2-E612/01 PER660D/DE PER660E/EE PER880D/DE PER881D/DE PER1100D/D PER1100E/E PLT1000W-FD/ PLT1000W-FE/E PT2-1100D/DP PT2-1100A-PD/ PT2-700-D/DP PT2-700A-PD/D PT2-700A-PE/E PT2-900-D/DP PT2-900A-PD/D PTD-112I-PD/D PTD-136DOSE/ PTDE-104-P/01 PTDE-104ECOP/ PTDE-124-P/01 PTDE-126-P/01 PTDE-134-P/01 PTDE-136DOSE/ PTDE-136DOSE/ PTE-112-PD/D PTE-112-PE/E PTE-92-PD/D PTE-92-PE/E PWA600D/DP PWA900E/EP S7300NN/AF 6B3GBGDDA 6B1GBGDDA SELECTA60D/DI SELECTA60ND/ SELECTA60NE/ SGT2100-ID/D SGT2100-IE/E SGT260-ID/D SGT260-IE/E SGT280-ID/D SGT280-IE/E SGT480-ID/D SGT480-IE/E SGT6100-ID/D SGT6100-IE/E SGT6120-ID/D SGT6120-IE/E SGT8100-I/02 SGT8100-I/03 SGT8155-I/01 SGT8155-I/02 SGT8355-I/01 SGT8360-I/01 SGT9360-I/01 SGT9360-I/02 6B1BTHFFA 6B1BTHFFA 6D1BTHFFC 6D1BTHFFC STAR8000D/D 6D3CBRFFA 6D3CBRFFB 6B3CBRFFA 6A3CBRFFA 6D3CBRFFC 6F3CBRFFB 6D1CBRFFA 6D1CBRFFA 6D1CBRFFB 6A1CBRFFA 6D1CBRFFC 6F1CBRFFA 6F1CBRFFB SWT800PD/D SWT800PD/F SWT800PF/G T102B3D/DF T103A1 CVA850E/EF ACCESS90D/DF TE1000ES-ED/D TE1000ES-EE/E TE1005-FD/D TE1104D/DF TE1105-FD/D TE1105-FE/E TE1205-FD/D TE602D/DF TE752D/DF TE800ES-ED/D TE800ES-EE/E TE904D/DF TE905-FD/D TE905-FE/E TF999D/DJ TF999E/EJ TF999F/FJ TL1000AWD/D TL1000AWE/E TL1240EDF-SD/D TL1240EDF-SE/E TP860NA/AN TP860NA/AN 103TVRD/DF TX708D/DA TX708ND/DA TX708NE/EA TX718D/DA TX718NE/EA TX718NF/FA TX728D/DA TX728AD/DA TX728AE/EA TX728AF/FA TX728NE/EA TX729D/DA TX729NE/EA TX738D/DA TX738NE/EA TX738NF/FA TX739D/DA TX739NE/EA TX768D/DA TX768AD/DA TX768AE/EA TX768AF/FA TX768AG/GA TX768NE/EA TX768NF/FA 6G1BTHSGA 6G1BTHSGA 6C1BTHSGA 6C1BTHSGA 6E1BTHSGA 6D1ATHSGA 6D1ATHSGB TX808XD/D TX818XD/D TX828XD/D TX838AE/E TX838XD/D EG1091D/DF EG7508D/DF EG7598D/DF EG9091D/DF VCT2007-F/01 VED1045-FF/F VED1045D/DF VED1045FE/E VED1145D/DF VED1145FE/E VED1245D/DF VED1245FE/E VED1345D/DF VED1345FE/E VED945D/DF VED945FE/E VLD6127-F/01 VLD6130-F/01 VLD6135-F/01 VLT1100-F/01 VLT1100W-F/01 VLT1101W-F/01 VLT1120W-F/01 VLT1121W-F/01 VLT2070-FD/D VLT2070-FE/E VLT2080-FD/D VLT2081-FD/D VLT2081-FE/E VLT2090-FD/D VLT2090-FE/E VLT2100-FD/D VLT2100-FE/E VLT2110-FD/D VLT2110-FE/E VLT4075-FD/D VLT4075-FE/E VLT4075-FF/F VLT4085-FD/D VLT4085-FE/E VLT4085-FF/F VLT4085C-F/01 VLT4085W/03 925330018 VLT4086-F/01 VLT4086-F/02 VLT4086W-F/02 925330063 VLT4087-F/01 VLT4087-F/02 VLT4090-F/01 VLT4096-F/01 VLT4096-F/02 VLT4096W-F/02 925330072 VLT4097-F/01 VLT4097W-F/01 VLT4099W-F/02 VLT4099W-F/03 VLT409-F/01 VLT4101W-F/01 VLT4101W-F/02 VLT4102S-F/01 VLT4103W-F/01 VLT4103W-F/02 VLT4105-FD/D VLT4105-FE/E VLT4105-FF/F VLT4105W/03 925330027 VLT4106-F/01 VLT4106-F/02 VLT4107-FD/D VLT4107-FE/E VLT4107-FF/F VLT4109-F/01 VLT4109W-F/01 VLT410P-F/01 VLT410P-F/02 VLT4110-FD/D VLT4110-FE/E VLT4111-FD/D VLT4111-FE/E VLT4115-FD/D VLT4115-FE/E VLT4115-FF/F VLT4115-FG/G VLT4116-F/01 VLT4117-F/01 VLT4120-FD/D VLT4120-FE/E VLT4123W-F/01 VLT4123W-F/02 VLT4125-FD/D VLT4125-FE/E VLT4125-FF/F VLT4126-F/01 VLT4126-F/02 VLT4127-F/01 VLT4127W-F/01 VLT4130-FD/D VLT4130-FE/E VLT4133W-F/01 VLT4133W-F/02 VLT4135-FD/D VLT4135-FE/E VLT4136-FD/D VLT4136-FE/E VLT4136-FF/F VLT4137-F/01 VLT4510CW-F/01 VLT5135-FD/D VLT5135-FE/E VLT5135-FF/F VLT5190W-F/01 VLT6100-FD/D VLT6100-FE/E VLT6103W-F/01 VLT6110W-F/01 VLT6114-F/01 VLT6120-FD/D VLT6120-FE/E VLT6128-F/01 VLT6130-FD/D VLT6130-FE/E VLT6620-F/01 VLT8130-FD/D VMC741D/DF VMT1043D/DF VMT743D/DF VMT803D/DF VMT843D/DF VMT903D/DF WA1010TLE/E WA1027D/DD WA1027D/ED WA1027E/FD WA1027F/GD WA1127D/DD WA1127D/ED WA2785D/DCH WA2785E/ECH WA2785.1D/D WA2785.1E/E WA910TLE/E WA927D/DD WA927D/ED 6B3CBREXA 6D3CBREXA 6D3CBREXB 6F3CBREXA 6D1CBREXA 6B1CBREXA 6D1CBREXB 6F1CBREXA WL900TD/D WL900TE/E WM1000ECOD/D WM1000ECOE/E WM1000ECOF/F WM1000SFD/D WM1000SFE/E WM1001ECOD/D WM1001ECOE/E WM1001NLD/D WM1150ECOD/D WM1150ECOE/E WM1151ECOD/D WM1151ECOE/E 6E1GBREXA 6G1GBREXA WM700D/D WM701D/D WM800ECOD/D WM801ECOD/D WM900ECOD/D WM901ECOD/D WMTL79D/DG WMT1000D/DC WMT600D/DC WMT800D/DC WOPI800E/01 WOPI800E/02 6E1GBGDKA 6G1GBGDKA WS5210D/DD WS5210E/ED WS5210DKE/E WS6200D/DD 6G3FBGILA 6G3FBGSSA 6E3FBGSSA 6E3FBGSSA 6E3FBGSFA 6E1GBGNLA 6E1GBRNLA 6G3FDHILA WSA7CTM-XD/D WSA7CTM-XE/E 6D1GBRNLB 6F1GBRNLA 2350385000 2350385000 2350377001 WT1040D/DA 6B3CTHDDA WT12885E-X/01 WT128DSE-X/01 WT128DSE-X/04 WT13895D-X/01 WT4020-OD/D WT4020-OE/E WT4020-OF/F WT410D/DA WT4180-RD/D WT4200-DD/D WT4200-DE/E WT4220-DD/D WT4220-DE/E WT52091-XD/D WT52111-XD/D WT52122-XD/D WT52133-XD/D 6E3EEBAAA 6G1BEBAAA 6F1GBGDDA 6F1GBGDDB 6D1GBGDDA 6D1GBGDDB 6D1GBGDKA 6D1GBGDKB 6F1GBGDKA WTC0101F/01 WTC0111F/01 WTC0610KXD/D WTC0611EX-E/E WTC0611EXD/D WTC0611FD/D WTC0612AXD/D WTC0701FX-D/D WTC0701FX-E/E WTC0714FD/D WTC0715F-D/D WTC0715F-E/E WTC0802AXD/D WTC0810KXD/D WTC0811EX-E/E WTC0811EXD/D WTC0811KXD/D WTC0812AXD/D WTC0814FD/D WTC0815F-D/D WTC0815F-E/E WTC0823K-XD/D WTC0823K-XE/E WTC0823K-XF/F 925690129 WTC0833E-XD/D WTC0833E-XE/E WTC0911KVD/D WTC0911KXD/D WTC0914FD/D WTC0933K-XD/D WTC0933K-XE/E WTC0933K-XF/F 925690156 WTC0939F/01 WTC0939F/02 WTC0951EX-G/G WTC0951EX-H/H WTC0951EXD/D WTC0951EXE/E WTC0951FD/D WTC0951FE/E WTC0951KD/DF WTC0951KXD/D WTC0951KXE/E WTC0952CAD/D WTC0952CAFE/E WTC1012AXD/D WTC1013F-F/F WTC1013FD/D WTC1013FE/E WTC1014FD/D WTC1015F-D/D WTC1015F-E/E WTC1015K-XD/D WTC1030F/01 WTC1033F-D/D WTC1033F-E/E WTC1033F-F/F WTC1033F-G/G WTC1033K-XD/D WTC1033K-XE/E 925690165 WTC1039F/01 WTC1051KVD/D WTC1051KVE/E WTC1051KXD/D WTC1051KXE/E WTC1061F-F/F WTC1061FD/D WTC1061FE/E WTC1061KXD/D WTC1061KXE/E WTC1062CA-FD/D WTC1062CA-FE/E WTC1084K-XD/D WTC1084K-XE/E WTC1084K-XF/F WTC1085CZ/01 WTC1085CZ/02 WTC1085CZ/03 WTC1133F/01 WTC1133F/02 WTC1138F/01 WTC1139F/01 WTC1139F/02 WTC1153F-D/D WTC1153F-E/E WTC1154CA-FD/D WTC1154CA-FE/E WTC1155F-D/D WTC1161KXD/D WTC1161KXE/E WTC1181FD/D WTC1181FE/E WTC1233F-D/D WTC1233F-E/E WTC1233F-F/F WTC1233K-XD/D WTC1233K-XE/E WTC1233K-XF/F WTC1238F/01 WTC1251KVD/D WTC1251KVE/E WTC1251KXD/D WTC1251KXE/E WTC1261FD/D WTC1281F-F/F WTC1281FD/D WTC1281FE/E WTC1283F-D/D WTC1283F-E/E WTC1284CA-FD/D WTC1284CA-FE/E WTC1284F-D/D WTC1284F-E/E WTC1284F-F/F WTC1289F/01 WTC1289F/02 WTC1296F-D/D WTC1296F-E/E WTC1298F-D/D WTC1298F-E/E WTC1298F-F/F WTC1298SF/01 WTC1298SF/02 WTC12D3F/01 WTC1330C-F/01 WTC1330C-F/02 WTC1333F-D/D WTC1333F-E/E WTC1333F-F/F WTC1337F/01 WTC1338F/01 WTC1368F/01 WTC1381EVD/D WTC1381EXD/D WTC1381EXE/E WTC1381EVE/E WTC1381FD/D WTC1381FE/E WTC1386F-D/D WTC1386F-E/E WTC1389F/01 WTC1389F/02 WTC1396F-D/D WTC1396F-E/E WTC1398SF/01 WTC1398SF/02 WTC13D8SF/01 WTC13D8SF/02 WTC6135E-F/01 WTC6230C-F/01 WTC6380F/01 6F3CBREXB 6F3CBREXB 6F3CBREXC 6F3CBRDKA 6F3CBRDKB 6F3CBRPLB 6F1CBRDDA 6F1CBRDKB 6F1CBRDKF 6F1CBREXB 6F1CBREXB 6F1CBREXC 6F1CBRDKA 6F1CBREEA 6G3FBREEA 6G3FBREEB 6G1GBRNLB 6G1GBRPLC 6G1GBREXC 6G1GBREXC WTM0611KD/D WTM0611KD/DP WTM0611KE/E WTM0611KE/EP WTM0611SD/D WTM0611SE/E WTM0711FD/D WTM0711FE/E WTM0713FD/D WTM0713FE/E WTM0713FF/F WTM0713FG/G WTM0801FD/D WTM0801FE/E WTM0801FF/F WTM0801FG/G WTM0811FD/D WTM0811FE/E WTM0811FF/F WTM0811FG/G WTM0811KD/D WTM0811KE/E WTM0813FD/D WTM0813FE/E WTM0813FF/F WTM0911ED/D WTM0911FE/E WTM0911KD/D WTM0911KD/E WTM0911ND/D WTM0911SD/D WTM0912KD/D WTM0912KD/DP WTM0913FD/D WTM0913FE/E WTM0913FF/F WTM0915FE/E WTM0916FD/D WTM916FE/E WTM091TFD/D WTM0931FE/E WTM0932FD/D WTM0933FD/D WTM1021ED/D WTM1021KD/D WTM1021KD/E WTM1021KD/F WTM1021ND/D WTM1021SD/D WTM1022KD/D WTM1022KD/DP WTM1031FE/E WTM1031FG/G WTM1032FE/E WTM1033FD/D WTM1034FD/D WTM1035FD/D WTM1121KD/D WTM1121KD/E WTM1131FE/E WTM1131KD/D WTM1131KE/E WTM1133FD/D WTM1134FD/D WTM1135FD/D 2350378001 2350378002 WTT5100I-X/01 WTT6100D/01

Autres modèles

1FET-96-D/DX 1FT-96-D/DE AC850F/FF AP851D/DF AP900D/DF AP900E/EF AP952D/DF AP952E/EF AP952E/EX EG9093E/EF LA851TE/EF LA9000TF/F PT2-900-D/DP TX738NF/FA WTM0911FE/E WTM0915FE/E WTM091TFD/D WTM0931FE/E WTM0932FD/D WTM0933FD/D

Autres modèles

900CAD/DF 900PAE/EF 900PAG/GF 901CAD/DF 901CAE/EF AC850D/DF ACCESS90E/EF ACCESS90E/FF ACS900TD/D ACS900TE/E ACS900TYD/D EG9093D/DF EG9093BDD/D EG9300PD/DF EG995ED/DF LA8500TD/D LA851TD/DF LA9000TD/D ACCESS90D/DF

Autres modèles

1FET-107W-X/01 1FET-108-X/01 1FET-109W/02 1FET-109-X/01 1FT-309-E/01 1FT-309-E/02 1FT-309-E/03 3TL931A/01 3TL931A/03 3TL941A/01 3TL941A/03 4TL730A/01 4TL730A/03 4TL740A/01 4TL740A/03 925020219 LA-108CSW 925110577 FFT-107W 925110586 FFT-109W 925110657 1FET-108W 925110666 1FET-109W 925330036 VLT4065W 925470241 PTE-830W 925470269 PTE-83W 925470303 TL5055EW 925470312 TL7011W 925470321 TL8022W 925470330 TL8033W 925470349 TL9022W 925470358 TL5066EW 925470367 TL7022W 925470376 TL8011W 925470385 TL9011W 925470401 PWM520TLW 925690067 WTC0533F1 925690101 WTC0633KW 925690110 WTC0722KW 925690138 WTC0833EW 925690147 WTC0864KW ALT0805W-F/01 ALT106-E/01 ALT108-E/01 ALT110-E/01 ALT2086-E/01 ALT2106-E/01 BCT800-DZ/01 BT10611-J/01 BT5522-J/01 BT5533-J/01 BT5544-J/01 BT5611-J/01 BT5677-J/01 BT7611-J/01 BT7622-J/01 BT8611-J/01 BT8622-J/01 BT8633-J/01 BT9611-J/01 BT9622-J/01 CA63E-I/02 CA63E-I/03 CA83E-I/02 CA83E-I/03 CK600-J/01 CK850-J/01 FET-2086-X/01 FFT-105W-X/02 FFT-105-X/01 FFT-105-X/02 FFT-107-F/01 FFT-107-F/02 FFT-107W-F/03 FFT-1080W-F/01 FFT-108-F/01 FFT-108W-F/01 FFT-108W-F/02 FFT-109-F/01 FFT-109-F/02 FFT-109W-F/03 FFT-208-F/01 FFT-65-M/01 FFT-800W-F/01 FFT-85-M/01 FLT-608B-X/01 FLT-608-X/01 FT-3096-E/01 LA-106CS-E/01 LA-106CS-E/02 LA-108CS-E/01 LL7T01-F/01 LT1005-E/01 LT1026-E/01 LT-105-E/01 LT-105W-E/03 LT-106-E/01 LT-106W-E/03 LT-308-E/01 LT-308W-E/03 LT501-E/01 LT805-E/01 LT806-E/01 LT806F-E/01 LT806M-E/01 LT806S-E/01 PESU2600-FI/01 PTE-830-P/01 PTE-830W/04 PTE-83-P/01 PTE-83W/03 PTE-840-P/04 PTE-84-P/04 PTE-940-P/01 PTE-940-P/02 PW650TLW-F/01 PWM520TL-F/01 SGT3155-I/01 SGT3155-I/02 SGT3160-I/01 SGT360-I/02 SGT360-I/03 SGT3655-I/01 SGT3655-I/02 SGT380-I/02 SGT380-I/03 SGT3855-I/01 SGT3855-I/02 SGTT316-I/01 SGTT386-I/01 TL5055E-J/01 TL5055E-J/02 TL5066E-J/01 TL5066E-J/02 TL5077E-J/01 TL5077E-J/02 TL5077EW-J/01 TL5088E-J/01 TL5099E-J/01 itelem TL7011-J/01 TL7022-J/01 TL8011-J/01 TL8011-J/02 TL8022-J/01 TL8022-J/02 TL8033-J/01 TL8033-J/02 TL9011-J/01 TL9022-J/01 TL9022-J/02 TT100-X/01 TT42W-X/01 TT60-X/01 TT61W-X/01 TX908-A/02 TX908-A/03 TX908N-A/01 TX908N-A/02 TX918-A/02 TX918-A/03 TX918N-A/01 TX918N-A/02 TX928-A/01 TX928-A/02 TX928N-A/01 TX928N-A/02 VLT4055-FD/D VLT4055-FE/E VLT4055-FF/F VLT4065-F/01 VLT4065W/03 WAT1308-X/01 WAT1308-X/02 WOPI601E/01 WOPI601E/03 WOPI801E/01 WOR12120IT/01 WOR12120IT/03 WOR16120IT/01 WOR16120IT/03 WOR16150BY/01 WOR16150BY/03 WOR16150EE/01 WOR16150EE/03 WOR16150OE/01 WOR16150OE/03 WOR16150PL/01 WOR16150PL/03 WOT16320IT/01 WOT16320IT/03 WOT16320IT/04 WOT16320IT/05 WOT16321IT/01 WOT16322IT/01 WOT16350BY/01 WOT20320IT/01 WOT20320IT/03 WOT20320IT/04 WOT20320IT/05 WOT20321IT/01 WOT20322IT/01 WOT20350BY/01 WOT20350BY/03 WOT20350BY/04 WOT20350BY/05 WOT20350OE/01 WOT20350OE/03 WOT20350OE/04 WOT20350OE/05 WOT20351BY/01 WOT20351BY/06 WOT20351EE/01 WOT20351EE/08 WOT20352AR/01 WOT20352BY/01 WOT24351EE/01 WOT26350BY/01 WOT26350BY/04 WOT26350BY/05 WOT26351BY/01 WOT26351BY/06 WOT26352BY/01 WP06R150HK/01 WP06R150HK/02 WP06R150HK/03 WP07R152HK/09-F WP08R120IT/01 WP08R120IT/03 WP08R150BY/01 WP08R150HK/01 WP08R150HK/03 WP08T320IT/01 WP08T320IT/03 WP08T320IT/05 WP08T321IT/01 WP08T322IT/01 WP08T350HK/01 WP08T350HK/03 WP08T350HK/04 WP08T350HK/05 WP08T351HK/01 WP08T351HK/08 WP09T352HK/01 WP10T322IT/01 WP10T350BY/01 WP10T350BY/03 WP10T350BY/05 WP10T350HK/01 WP10T350HK/03 WP10T350HK/04 WP10T350HK/05 WP10T351HK/01 WP10T351HK/08 WT05735FA-X/01 WT05735F-X/01 WT05735F-X/02 WT05735G-X/01 WT05735G-X/02 WT06725E-X/01 WT06725E-X/02 WT06726F-M/01 WT06735E-X/01 WT06735E-X/02 WT07725E-X/01 WT07725E-X/02 WT08725E-X/01 WT08725E-X/02 WT08725G-X/01 WT08725G-X/02 WT08726F-M/01 WT08735E-X/01 WT08825F-X/01 WT10765E-X/01 WT10765E-X/02 WT11765E-X/01 WT51062-X/01 WT51062-X/02 WT51062-X/03 WT52092-X/01 WT52092-X/02 WT52092-X/03 WT6040-S/01 WT61060-X/01 WT62080-X/01 WT63090-X/01 WT63090-X/02 WT63110-X/01 WT63110-X/02 WT63131-X/01 WTC0533FX-XD/D WTC0533FX-XE/E WTC0533FX-XG/G WTC0621K-X/01 WTC0621K-X/02 WTC0633A/01 WTC0633A/02 WTC0633AN/01 WTC0633AN/02 WTC0633FX/02 WTC0633FX-01 WTC0633K-XD/D WTC0633K-XE/E WTC0722K-XD/D WTC0722K-XE/E WTC0823A/01 WTC0823A/02 WTC0823AN/01 WTC0823AN/02 WTC0823FX-01 WTC0823FX-02 WTC0833A/01 WTC0833A/02 WTC0833AN/01 WTC0833AN/02 WTC0833ES/01 WTC0833F-D/D WTC0833F-E/E WTC0864K-XD/D WTC0933A/01 WTC0933AN/01 WTC0933AN/02 WTC0933F-D/D WTC0933F-F/F WTC0964K-F/01 WTC0964K-F/02 WTC1035F/01 WTC1036S-F/01 WTC1167F/01 WTT6121D/01

Autres modèles

1000BLD/DF 845BLD/DF AC1002D/DF AC1002E/EF AC11SPD/DF EG1071PD/D EG1075ED/D EG1081D/DF EG1082D/DF EG7581D/DF EG8081D/DF FET-3106D-X/02- L855E/EF MWT1-E2613/02-E PTD-105-P/02 PWA1000D/D PWA800D/DP PWA900D/DP VV1010TD/D WA1010TLD/D WA910TLD/D
