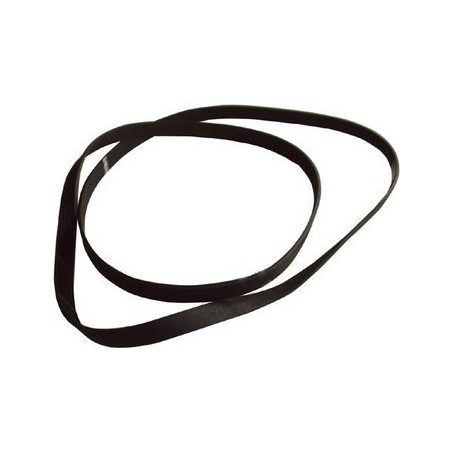

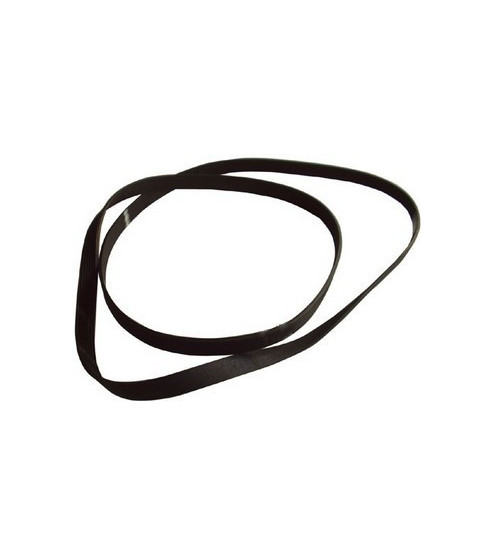

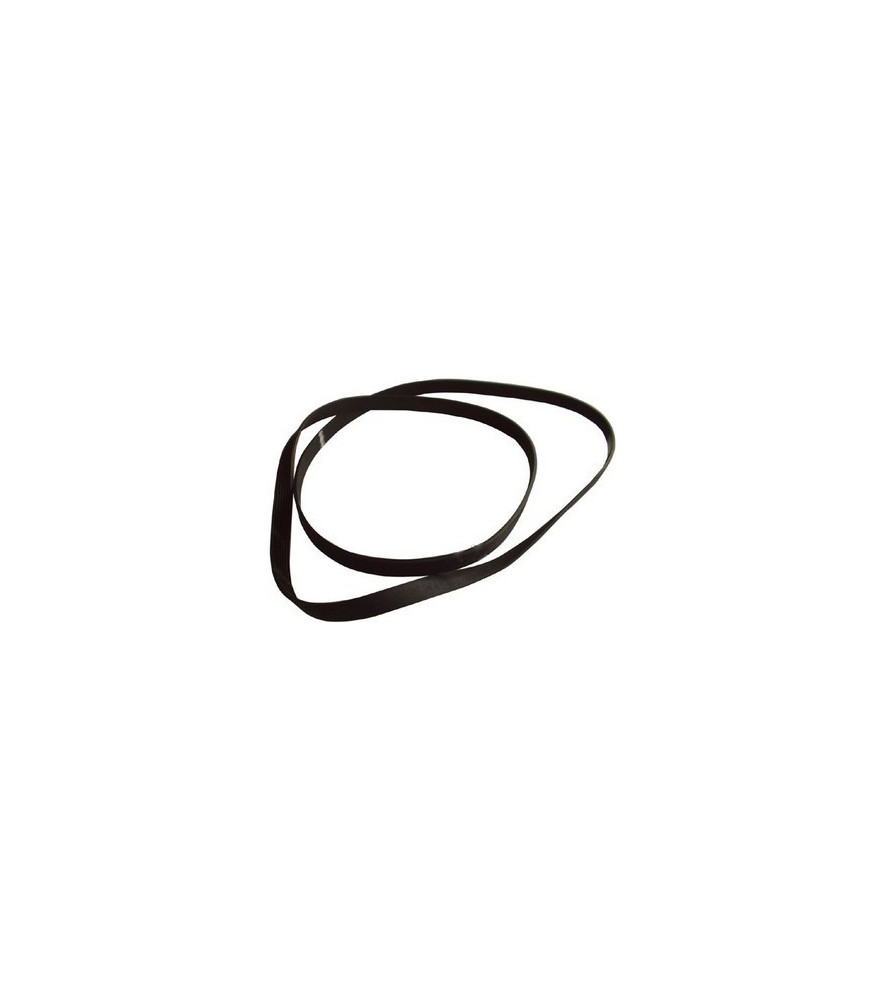

Courroie 1217 J4 lave-linge Arthur-Martin Faure

La courroie de type 1217J4, référence d'origine constructeur 1240211001 est une courroie de transmission utilisée dans certains modèles de lave-linge du groupe Electrolux et ses marques associées.

Nous proposons un tutoriel de dépannage pour l'échange de la courroie sur le lave-linge, rédigé par notre technicien.

Caractéristiques générales :

• Dimensions : Le nombre 1217 indique la longueur de la courroie en millimètres, soit environ 121,7 cm.

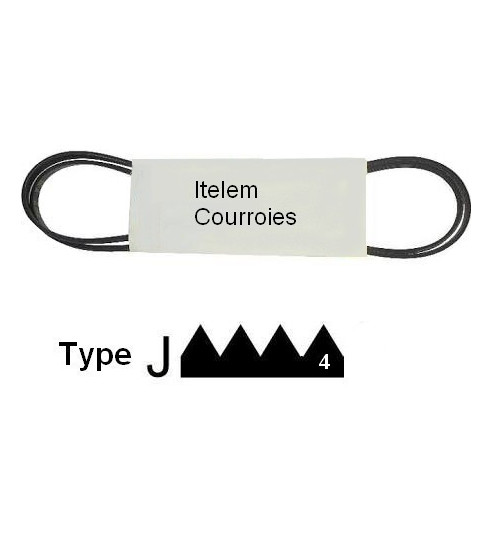

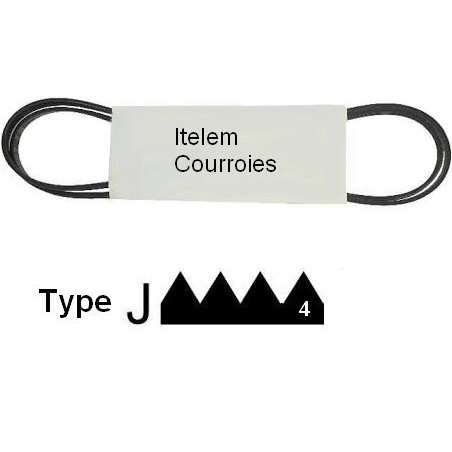

• Type : Le "J" signifie qu'il s'agit d'une courroie dentée acérée et striée, ce qui améliore l'adhérence et la transmission de puissance.
• Le chiffre 4 indique que la courroie est dotée de 5 stries.
• Matériau : Généralement fabriquée en caoutchouc renforcé de cordelettes fines pour résister à l'usure et à la chaleur.

Fonction :

• Transmet la puissance du moteur au tambour du lave-linge.
• Permet la rotation du tambour pendant les cycles de lavage et d'essorage.

Symptômes d'une courroie défectueuse :

• Le tambour ne tourne pas ou tourne de manière irrégulière.
• Bruits de grincement ou de claquement pendant le fonctionnement.
• Le lave-linge ne termine pas ses cycles correctement.

Nous proposons également à la lecture un tutoriel sur les courroies de lave-linge rédigé par notre technicien.

Liste d’appareils concernés (Non exhaustive)
-Information à relever sur la plaque signalétique apposée sur le tour de porte, derrière la trappe de pompe de vidange ou au dos de l’appareil.
-Code usine (Commençant par 91), suivi de la référence commerciale du lave-linge.

91424083100 AW405 91424083101 AW405 91424081500 AW405F 91424088900 F402 91424082400 FLS411C 91424081400 FLS412 91424082500 FLS422C 91424084600 FLS472 91424086100 FLS483 91426080600 FLS512 91426080700 FLS513 91424081600 LFC410W 91424083000 LFC429 91424084700 LFC432 91424086000 LFC433 91426081000 LFC510W 91426081100 LFC560W 91478952400 LFC589M 91372704100 LTC401 91372887100 LTC412 91372982100 LTC417 91376021100 TL404 91376080100 TL406 91376080101 TL406 91376080102 TL406 91372906100 TL422 91372737100 TL422

Autres modèles

91482003000 60 91478904100 410 91478908000 502 91478908900 503 91478908100 1106 91478914400 013622 6 91450001100 019757 4 91478906600 022830 4 91450003700 022831 2 91450004200 022851 1 91478911800 053393 5 91478911500 053396 8 91478913100 053536 9 91478911300 053944 5 91478914500 062375 1 91477604300 555X 91477005200 AL40TX 91477009800 AL40TX 91477005300 AL50TX 91477005300 AL50TX 91477009900 AL50TX 91478015000 AW532F 91478015000 AW532F 91478016100 AW532F 91478015100 AW565F 91478015100 AW565F 91478016200 AW565F 91478952100 AW575F 91478952100 AW575F 91477002000 BL52TX 91477002000 BL52TX 91477007600 BL52TX 91372486100 CA445C 91372486100 CA445C 91372235100 CA640C 91478001700 CC341 91478901500 CC341 GAIA 91478001800 CC342 91478902700 CC342 91424081800 CC420 91424081700 CC420S 91424081900 CC43 91424081900 CC43 91475401600 CC440 91475402000 CC440 91478909100 CC450 91426081200 CC52S 91426081300 CC530 91475401700 CC540 91475402100 CC540 91478901400 CC951 91478901400 CC951 91483000900 CC952P 91476000800 CITY 32 91476001900 CITY32 91477000300 CLASSIC 40T 91477000400 CLASSIC 60T 91477005900 CMF41 91477005900 CMF41 91477014700 CMF41 91477014700 CMF41 91478008600 CMF41C 91477003400 CX341 91477003500 CX342 91477003500 CX342 91477014500 CX342 91477602500 CX342 91477602500 CX342 91474002800 CX343SLIM 91474000700 CX3452 91477003600 CX351 91477601900 CX351 91477602000 CX351 91477602000 CX351 91474001400 CX353 91474001400 CX353 91474007200 CX440 91474007600 CX440 91474009100 CX440 91477609000 CX45 91477605800 CX450 91477606800 CX450 91477609200 CX450 91474007300 CX540 91474007700 CX540 91474009200 CX540 91477609100 CX55 91477605900 CX550 91477606900 CX550 91477609300 CX550 91477701400 CX951J 91477703500 CX951J 91477705600 CX951J 91474002900 CX953SLIM 91482001000 CX954 91478903800 D52TC 91478912100 EF4051 91478002400 EH5260 91478002400 EH5260 91478002500 EH5260 91478002600 EH5300 91478002600 EH5300 91477606700 EW ANNIVERSARY 91478903400 EW400F 91478903400 EW400F 91478903500 EW401F 91478903500 EW401F 91477600900 EW500F 91482001400 EW501F 91482002800 EW501F 91477602600 EW502F 91477602600 EW502F 91474002700 EW503S 91474005700 EW503S 91474005800 EW504S 91482004900 EW505F 91474006900 EW506S 91474007100 EW506S 91477605200 EW507F 91477605300 EW508F 91477605300 EW508F 91477605500 EW508F 91474007000 EW509S 91477651100 EW510F 91477651100 EW510F 91478910500 EW521F 91478913800 EW521F 91490001100 EW550F 91490005300 EW550F 91490010900 EW560F 91478905600 FL401C 91478905600 FL401C 91478915800 FL402C 91478907400 FL411C 91478907400 FL411C 91475400500 FL411CN 91477608300 FL412 91482008600 FL434 91482010500 FL434 91482008700 FL444 91482010300 FL444 91482009300 FL444M 91482010400 FL444M 91477604700 FL502 91476001000 FL503CN 91478907500 FL522C 91475400400 FL522CN 91476001800 FL533NC 91475401800 FL543NC 91474008900 FL544N 91477607200 FL552 91477609600 FL552 91477608400 FL553 91477604800 FL602 91477022600 FLC512 91477023700 FLC512 91478951300 FLS554C 91477703600 JET400 91478907700 LAV404 60541991600 LAV404 91478907200 LAV502 60541991500 LAV502 60541991700 LAV502 60541991800 LAV503 91478908900 LAV503 91478907200 LAVAMAT 502 91477601200 LB400 91477607700 LB400 91477602300 LB41 91477602400 LB5 91478907800 LC42 91478915700 LC42 91483002500 LD2450 91483003100 LD2450 91483002600 LD2550 91483003200 LD2550 91483002700 LD2550M 91483003300 LD2550M 91450001700 LF0401 91478001500 LF0422 91478005000 LF0423 91450000800 LF0450M 91450000800 LF0450M 91474001200 LF0525 91477020700 LF0535 91477020700 LF0535 91487000300 LI0522 91487000300 LI0522 91487001800 LI0522-1 91487001800 LI0522-1 91488700100 LI500JS 91488700200 LI500JS 91488700300 LI50JS 91488000300 LI51 91474006700 LPX53 91474008500 LPX53 91450001900 LR14 91450001800 LR24T 91450001800 LR24T 91372161100 LT4435 91372161200 LT4435-2 91372162100 LT5435-1 91372162100 LT5435-1 91372163100 LT5438-1 91372163100 LT5438-1CARB 91372241100 LT5465-1 91372241200 LT5465-2 91372567100 LTC400 91482004200 LUXUS 500 91482004200 LUXUS 500 91477608700 LUXUS450SEL 91477609700 LUXUS450SEL 91482005000 LUXUS500 91474005500 LUXUS542 91482008500 LUXUS600 SEL 91477604500 LX53 91477604500 LX53 91478000500 M41TC 91478003200 M41TC 91478003200 M41TC 91477001800 M41TX 91477007100 M41TX 91477007700 M42TX 91477007200 M52TX 91477007200 M52TX 91477001900 M52TX 91477001900 M52TX 91477700600 M54JS 91477700600 M54JS 91450002200 P04 91474000600 P52 RX 91474004000 P62RX 91482003300 PERFECTA 91476000600 PF85 91474006000 PL35S 91477004800 PL4 91477004800 PL4 91477016800 PL4 91372066200 PL40T 91372066200 PL40T1 91477602700 PL43S 91477004300 PL4M 91477004200 PL5 91477016900 PL5 91477016900 PL5 91372067200 PL50T 91372067200 PL50T 91474005900 PL53S 91474001700 PL54 91474001700 PL54 91477703100 PL5J 91477706400 PL5J 91477011700 PL6 91477011700 PL6 91474702200 PL64J 91477704800 PL6J 91477704800 PL6J 91478953500 PO455C 91477652100 PO455X 91477604900 PO46 91477604900 PO46 91477605000 PO66 91474002500 POCKET 420T 91474002500 POCKET 420T 91474700000 POCKET 500JS 91474000200 POCKET 500T 91474002200 POCKET 500T 91474000100 POCKET400 91474000100 POCKET400 91474005100 POCKET400X 91477004600 PP4 91474001600 PP44 91477004500 PP5 91474003500 PP64 91478904800 PR34S 91478002000 PR4 91478007900 PR4 91478002100 PR40 91478909900 PR42 91478915900 PR425ST 91478910100 PR42S 91478902200 PR43 91478902200 PR43 91475401300 PR434 91475402200 PR434 91478904000 PR43S 91478953300 PR450ST 91478953400 PR453C 91478953400 PR453C 91478005400 PR5 91372065200 PR50T 91372065200 PR50T 91478904700 PR53 91475400000 PR53S 91478953700 PR553C 91478953600 PRC45E 91478953800 PRG55C 91477004400 PS4 91477004900 PS5 91477005000 PS5M 91372494100 PTC43 91372494100 PTC43 91372651100 PTC430 91372526100 PTX43 91372526100 PTX43 91450002400 QW500H 91483002000 QW505H 91483002000 QW505H 91478901600 R41TC 91478902800 R42TC 91477601000 R42TX 91478902900 R52TC 91477601100 R52TX 91477608000 R52TX 91477600700 RG240X 91477600700 RG240X 91478907900 RG4 91478915200 RG4 91478916500 RG4 91372146100 RGT5 91478909400 RL04 91478915500 RL04 91478904900 RL4 91478909500 RL40 91478909500 RL40 91478915600 RL40 91478915600 RL40 91475400900 RL40P 91475401900 RL40P 91478909300 RL40ST 91478909300 RL40ST 91478915400 RL40ST 91477606200 RL40X 91477607800 RL40X 91450003200 RL42C 91450003200 RL42C 91450003300 RL42TC 91450003300 RL42TC 91478905000 RL43 91478950200 RL43S 91478952000 RL43S 91475400100 RL4P 91475401000 RL4P 91478950000 RL4S 91478951800 RL4S 91477602900 RL4X 91477607900 RL4X 91474006200 RL4XP 91474008300 RL4XP 91477650000 RL4XS 91477651700 RL4XS 91477606300 RL50X 91477608100 RL50X 91474008100 RL50XP 91474009400 RL50XP 91478905500 RL53 91478950300 RL53S 91478951900 RL53S 91477603200 RL53X 91477650100 RL53XS 91477651600 RL53XS 91478800000 RL5J 91476000100 RL5M 91476001500 RL5M 91475400300 RL5P 91475401100 RL5P 91475700100 RL5PJ 91477604200 RL5X 91477608200 RL5X 91474006300 RL5XP 91474008400 RL5XP 91477603100 RL94X 91476000700 RL95M 91476001600 RL95M 91372611100 RLB4T 91372611100 RLB4T 91476002600 RLB5M 91372470100 RLT40 91372012200 RLT5 91372012200 RLT5 91372012300 RLT5 91372012300 RLT5 91478013200 RTF500 91478013200 RTF500 91372177100 RTT550 91450003600 S401 91450003600 S401 91476001100 SIRIO 32P 91474001000 SIRIO 42 91474001000 SIRIO 42 91477001500 SIRIO 555X 91482000000 SIRIO 60 91474003800 SIRIO42 91477008900 SIRIO555X 91477012800 SIRIO555X 91478005100 TF2-502 91478005100 TF502-2 91483001800 TF505-3 91483001800 TF505-3 91478914200 TF542-4 91478914200 TF542-4 91372568100 TL402 91372463100 TL442 91372005200 TL473 91372005300 TL473-2 91372546100 TL476 91372671100 TL483 91372062200 TL543C 91372062300 TL543C 91372061200 TL552C 91372061300 TL552C 91372104100 TL552C 91372006200 TL574 91372420100 TLC412 91450001600 WH240 91450001600 WH240 91450002500 WH500 91483001600 WH505 91483001600 WH505 91478912800 WV400 91476001400 Z32P 91478909200 Z400TC 91477606000 Z400TX 91372277100 Z40TL 91372277100 Z40TL 91474007500 Z42PX 91477606100 Z550TX 91450000700 Z703C 91450000700 Z703C 91450000900 Z703C 91450000900 Z703C 91450004500 Z703C 91450004500 Z703C 91450001000 Z705C 91450004700 Z705C 91478912500 Z713C 91478912500 Z713C 91478912500 Z713C 91478912600 Z715C 91478912600 Z715C 91478900000 ZF400C 91478900500 ZF400C 91478900500 ZF400C 91478901800 ZF410C 91478901800 ZF410C 91478901800 ZF410C 91478903200 ZF411C 91478903200 ZF411C 91477000800 ZF441 91477000800 ZF441 91450002300 ZF5000 91450002300 ZF5000 91478909700 ZF5001 91478909700 ZF5001 91478900100 ZF500C 91478900600 ZF500C 91478900600 ZF500C 91478901900 ZF510C 91478901900 ZF510C 91478901900 ZF510C 91478903300 ZF521C 91477706300 ZF523J 91477000500 ZF540 91477000500 ZF540 91478000600 ZF71.42 91478000600 ZF71.42 91478000800 ZF71.44 91478000900 ZF71.52 91478001000 ZF72.52 91478000700 ZFS71.42 91474000400 ZS533 91474000400 ZS533
