Tuyau de vidange lave-vaisselle Colged Elettrobar

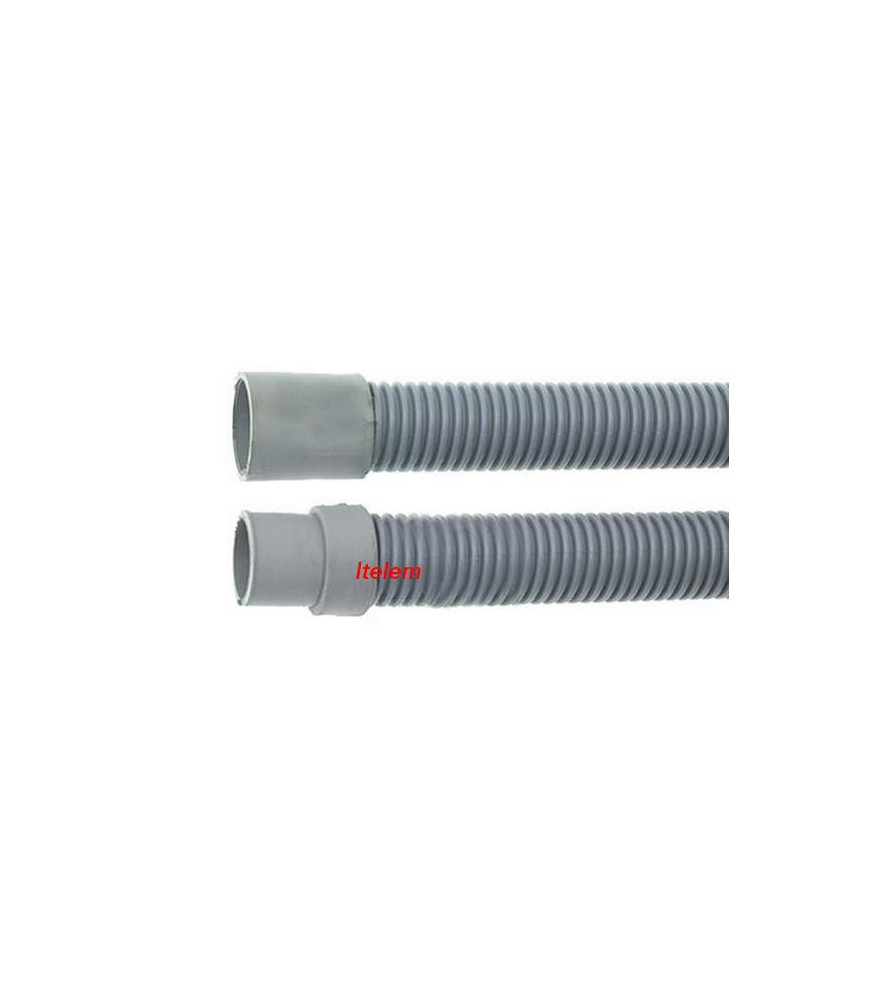

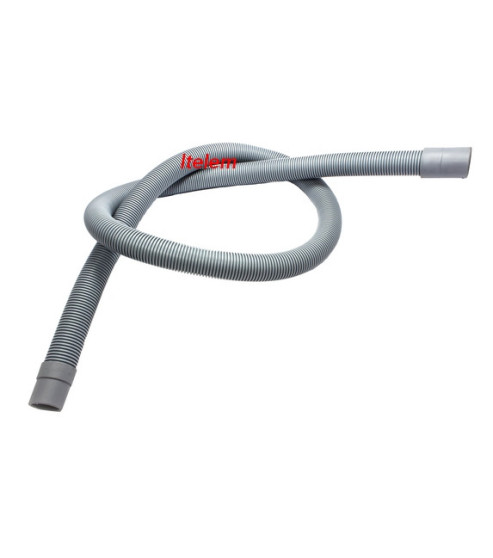

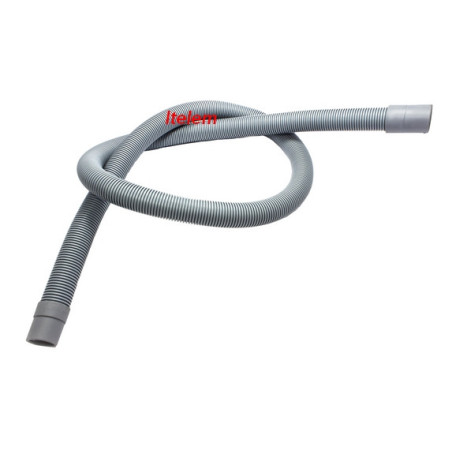

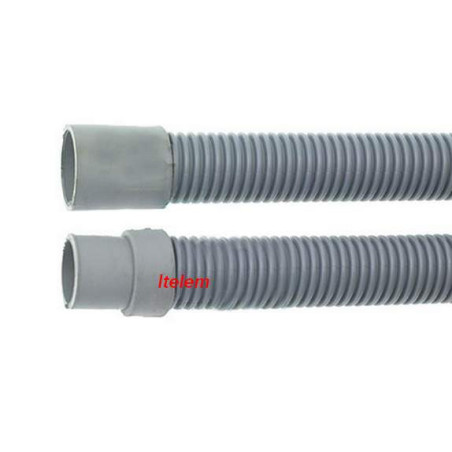

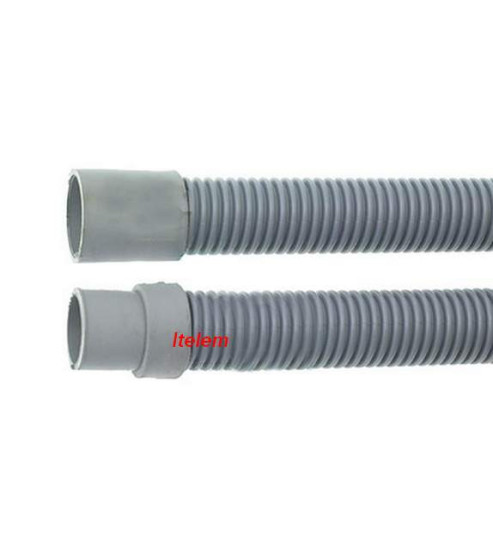

Tuyau de vidange lave-vaisselle Colged Elettrobar — référence 143178

Tuyau de vidange pour lave-vaisselle professionnel, compatible avec de nombreuses marques CHR dont Colged, Elettrobar, Dihr, Silanos, Desco, Bartscher, Bonnet, Capic, Elframo, Komel, Mbm et Thirode.

Diamètre intérieur 24/28 mm, longueur 1500 mm.

Cette pièce assure l'évacuation de l'eau usée de la cuve vers le réseau de vidange. Un tuyau fissuré, percé ou désolidarisé de son raccord est une cause fréquente de fuite sous l'appareil, à vérifier en particulier sur les modèles Colged STEEL51 et équivalents si une fuite apparaît en phase de vidange.

A lire depuis notre forum: Lave-vaisselle Steel 51 qui fuit en fin de service, le technicien liste les origines possibles à vérifier.

Liste d'appareils compatibles par marque

Pour identifier avec certitude la référence adaptée à un appareil, il est recommandé de relever le modèle technique inscrit sur la plaque signalétique apposée ou gravée sur l'appareil. Cette liste, non exhaustive, recense les lave-vaisselle professionnels compatibles, classés par marque.

AMIKA

5X, 6X, 6XA, 6XL, 6XLB, 6XLE, 7XL.

ANGELO PO

KD40, KD60, KD60E, KD60EAT, KD60M, KD60MA, KD60ME, KD60MPS, KD60MPSA, KD60PS, KD60PSD, KD6EATSD, KN1100, KN50MPS, KN50PSDD, KN80PS, KD100, KD100A, KD100PSD, KN1100SD, KN11PSDD, KN800, KN800PSD, N100D, N100S, N100VD, N100VS, N38D, N38S, N38VD, N38VS, N42D, N42S, N42VD, N42VS, N50D, N50S, N50VD, N50VS, N66D, N66S, N66VD, N66VS, N70D, N70S, N70VD, N70VS, N85D, N85S, N85VD, N85VS, KD37PS, KD40EPSD, KD40LEPS, KD40LSPS, KD40PS, KN35, KN37PS, KN40PS, KN40PSD.

COLGED

BETA250, BETA253, BETA258, GL56, GL56S, GL56SPS, GS55, GS55CRP, GS56, GS57, ONYX50, SILVER50, SILVER50 MARINE, SILVER50GW, SILVER50S, STEEL45, STEEL51, STEEL51HP, STEEL53BD, STEEL53MS, STEEL58, STEELTECH350, STEELTECH360BK, STEELTECH360SK, STEELTECH361, STEELTECH371, C600, PL109, PL112, PL114, PL215, PL220, BETA245, ONYX50S, SILVER45, STEEL510, STEEL510D, STEELTECH360, STEELTECH360K.

DESCO

DS40D, DS50TS, LP35, LP39.

DEXION

D500LS, D501LS, LB044, LB044P, LP045-10-000, LP048-10-000, LP051-06-000, LP051-06-000P, LP051-06-100, LP051-10-000, LP051-10-000MPD, LP051-10-100, LP053, LP053-06-000, LP053-10-000, LP053-10-100, LP053BT-DP, LP054-ZH, LP056-10-000, LP057-10-000, LP058-00-010MPD, LP802.

DIHR

92 (AX290), 103U (DS35), 103UT (DS35 TOUCHE RL09), 104U (DS37), 104UT (DS37 TOUCHE RL09), 105U (DS40), 105UT (DS40 TOUCHE RL09), 121EN (DS50), 78R (DS50), 78U (DS50), 78UT (DS50 TOUCHE RL09), 125EU (ELECTRON400), 32ELK (ELECTRON400), 32ELKC (ELECTRON400 ACQUA PULITA), 124EU (ELECTRON500), 124PU (ELECTRON500), 29ELK (ELECTRON500), ELECTRON500 CLEAN, 122EU (ELECTRON600), 83ELK (ELECTRON600), 100U (G35), 67R (G35), 67U (G35), 38R (G600), 38U (G600), 7R (GASTRO450), 7U (GASTRO450), 29S (GASTRO500), 295U (GASTRO500 PLUS), 297R (GASTRO750 PLUS), 297U (GASTRO750 PLUS), 29S (GASTRO750S), 101U (GS37), 73R (GS37), 73U (GS37), 102U (GS40), 10U (GS40), 74R (GS40), 74U (GS40), 31R (GS45), 31U (GS45), 9R (GS50), 9U (GS50), 66R (GS85), 66U (GS85), H63E (H600 ELETTRONICA), 111EN (HT12E), 111EU (HT12E), 6R (LINEAR), 6U (LINEAR), 115U (OPTIMAHR), 32P (TEKNO4), 32R (TEKNO4), 29P (TEKNO6), 29R (TEKNO6), 144R (GASTRO11S), 14U (GASTRO11S), 373R (GASTRO12S), 373U (GASTRO12S), 373E (GASTRO12S ELETTRONICA), H63R (H600), 112E600U (H600E PLUS), 144U (HT11), 14R (HT11), 144S (HT111E), 144T (HT11T TOUCHE), 373U (HT12), 37U (HT12), 112EU (HT12E PLUS), 34 (AX151), 34 (AX151HS), 34HS (AX151HS), 22 (AX160), 91 (AX161), 23 (AX210), 24 (AX250), 25 (AX300), 25 (AX300LC), 25 (AX310), 25 (AX310LC), 25 (AX330), 26 (AX380), 26 (AX380LC), 26 (AX400), 27 (AX440), 27 (AX440LC), 28 (AX540), 28 (AX540LC), 71 (BX230), 71G (BX230), 71G (BX230 CON SISTEMA GIRACESTE), 39 (BX280), 72 (BX300), 85S (CAN MASTER), 85EG (EVENT MASTER), 85EG (GLASS MASTER), 87 (TX1500), 85 (UX220), 77 (CX), 77 (FX), 86U (DS45), 4R (STAR), 4U (STAR), 291P (TEKNO6 ACQUA PULITA).

ELETTROBAR

E45P, E46, E50, E50D, E50D FRN, E50FRN, E50PS, E50SA, E51, E51D, E51PS, E55, E55EB, FAST145, FAST145D, FAST160, FAST160D, FAST160DP, FAST161, FAST161D, FAST161DP, FAST161PA, FAST51M, FAST51MD, FAST51MDP, FAST51T, FAST51TD, FAST51TDP, MISTRAL51, NIAGARA51, RIVER50, RIVER50CRP, RIVER50D, RIVER53T, RIVER54, RIVER54D, RIVER54PS, RIVER61, RIVER61CRP, C600, CLEAN221, CLEAN271, CLEAN272, CLEAN362, CLEAN161, E45, E45D, MISTRAL51D, MISTRAL51PS, NIAGARA35, NIAGARA45, NIAGARA45D, NIAGARA45WRC, NIAGARA51D, NIAGARA51MT, NIAGARA51MTPS, NIAGARA51MTPSSA, NIAGARA51MTSA, RIVER48.

ELFRAMO

LP61, LP61H, BE40, BE50, BE50T, C44ELT, C66ELT, C77ELT, D120, D120DGT, D30, D35, D36, D40, D45, D80F, D85, SQ60, SQ885, SQT80, C33, C34DGT, C44, C44DGT, C66, C66DGT, C77, CE24, B11, B15, BD11, BD13, BD14, BD22, BD46, BD47, BE35, D40I, SQ42, SQ42E, SQ48, SQ48E, SQ55.

EMMEPI

LB40, LB40DG, LB40DGP, LB40EDG, LB40P, LBE34, LBE34DG, LBE35ECO, LBE40E, LBE40ECO, LP0061, LS0011, LS005P, LS008, LS009, LS011, LS05, LS055E, LS055EP, LS09, LS09E, LS005.

EUROWASH

350, 360, 363, 373, 453, 453P, 503, 503PS, 503S, 513, 513S, 553, 583, 593, 361.

HOBART

CLG26DNA-10, ECOMAX 500, H500, STBE40DUK-11.

JEMI

GS100, GS16, GS18, GS19, GS2, GS20, GS3, GS30, GS4 AF, GS4-2, GS4-2-AF, GS6, GS6 AF, GS7, GS82, GS8-2, GS82M, GS9, GSP46, MA-MC, C-3770-T, C-4650-T, C-5250-T, C-5530-T, C-6730-T, C-7010-T, A-1280, A-1580-T, A-1800, A-2100-T, A-2160, A-2460-T, A-2820-TECO, A-2980-T, A-3340-TECO, GS-4.

KOMEL

KLP61, KLP61H, 8033, 8034DGT, 8044, 8044DGT, 8044ELT, 8066, 8066DGT, 8066ELT, 8077, 8077ELT, F11, F13, F14, F22, F46, F47, F912, F912DGT, F93, F94, F96, F97, F98F, F99, K8033, K8034, K8044, K8066, BE35 KOMEL, BE40 KOMEL, BE50 KOMEL, BE50T KOMEL, F86, F88, F89, F91, F92, F94I, F95.

KRUPPS

COMPACK B40, COMPACK B43, COMPACK B43DB, COMPACK B48, COMPACK B53, COMPACK B55, KORAL 500, KORAL 540DB, KORAL 205, KORAL 206, KORAL 207, KORAL 208, KORAL 208 LS, KORAL 209, KORAL 210, KORAL SR400.

LINEA BLANCA

LC1000, LC140, LC1500, LC-1500, LC1700, LC-1700, LC2000, LC-2000, LC2300, LC-2300, LC2300TR, LC-2300TR, LC2600, LC-2600, LC2800, LC-2800, LC3800, LC4200, LC80, LC-3800, LC-4200, LC-1000, LC-140, LC-80.

MBM

E46, KLF500E, KLF580, LF50, LF500, LF55, LF550, LF551, LF55E, LF56, LF59, LF60, LFD50, LS500, LS501, LS505, LS505M, LS505PT, LS505T, LS511, LS520, D500LS, D501LS, E55, LB145, LB45, LB450.

SAMMIC

SU-600, SU-750, S-290, S-350, S-550, S-750, S-750A, SB-290, SB-350, SB-550, SB-750, SB-750A, SL-1100BP, SP-23, SP-23B, SP-290, SP-350, SP-550, SP-550B, SP-800, SV-18, SC-1100, SC-1200, SL-1100, SL-1100B, SL-1200, SL-1200B, SL-1200BP, SL-900, E-18, E-19, LVT-18, LVT-18A, LVT-18H, S-20, S-21, S-23, SB-22, SB-23, SV-18H, SV-19, SV-20, SV-21, SV-21B.

SILANOS

LVE13C.

UNIVERBAR

LOGOS 4, LOGOS 4D, OMEGA 4, OMEGA 4D, SINCRO, SINCRO D, BET 37, BET 37D, BET 40, BET 40D, BET 40S, BET 40S D, ERGON, MIX, TOP.

WOLK : 450, 500, 500HP, 563.
