Module électronique de puissance four Siemens Neff

Descriptif produit

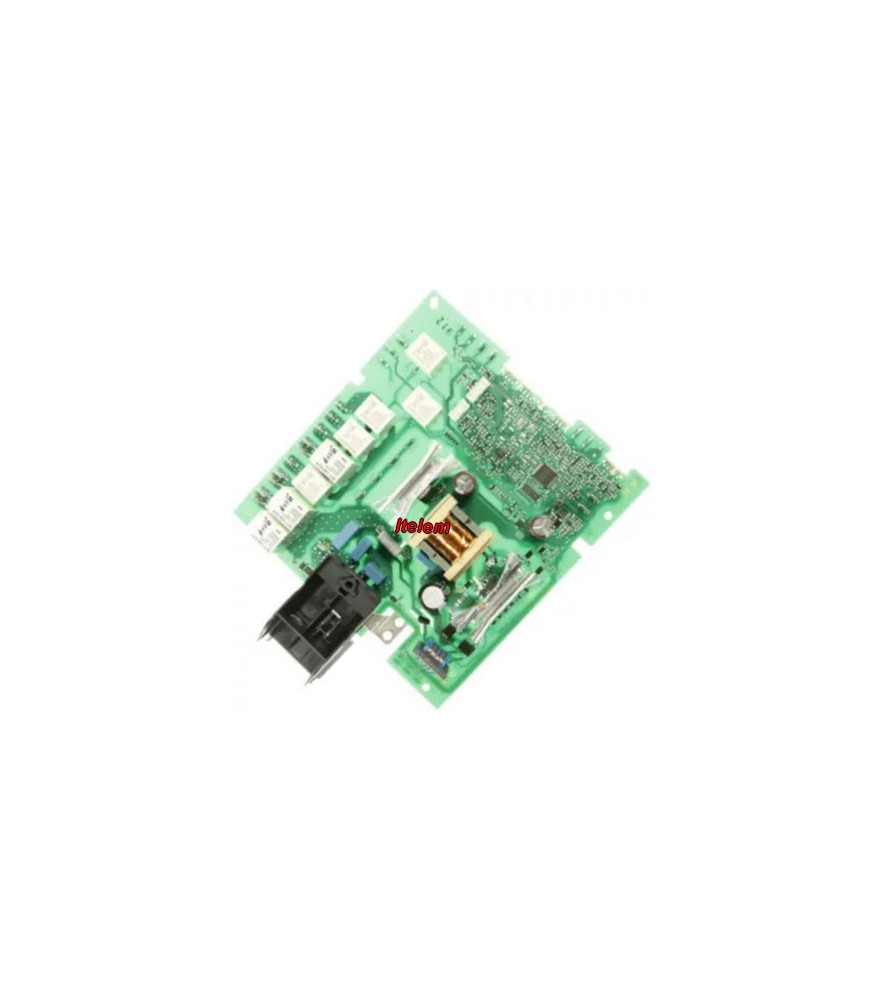

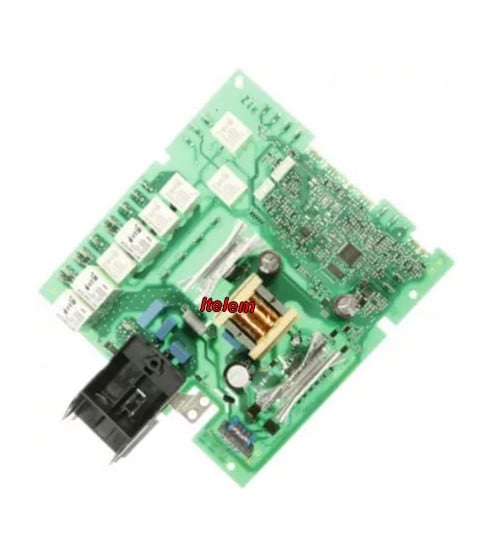

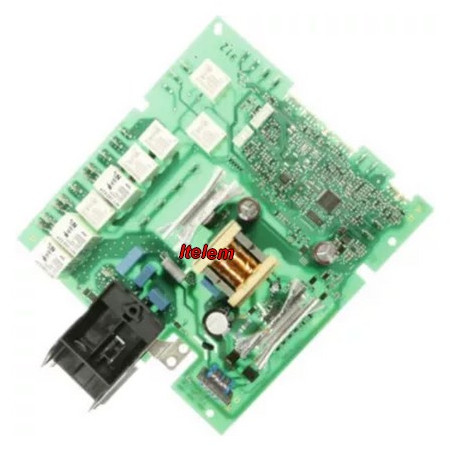

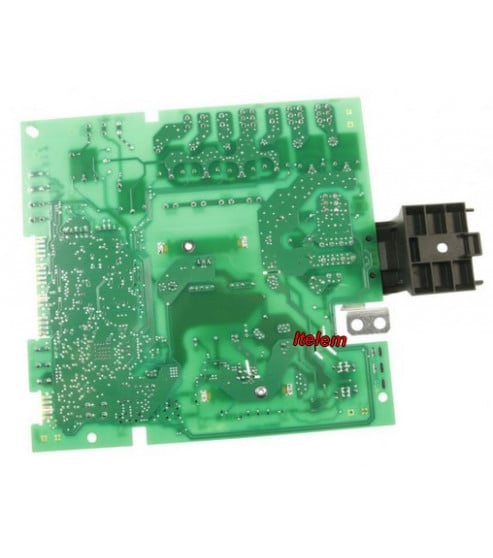

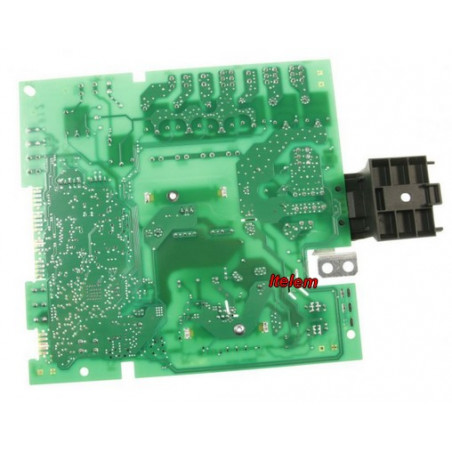

Module électronique de puissance (module de contrôle, CPM) réf. 11029067 (réf. interne CUA029067D), pour four des marques Bosch, Siemens, Neff. Livré programmé. Cette carte pilote l'ensemble des fonctions de l'appareil : synchronisation secteur, communication avec les autres modules (interface utilisateur, module d'affichage, module vapeur, entraînement de porte), lecture des sondes de température four et micro-ondes, sécurité de verrouillage de porte, et commande des ventilateurs (magnétron, refroidissement, brassage).

Codes défaut liés à l'échange du module de contrôle

Donner à titre indicatif, peut varier selon la panne originelle

• A0103 — Version software incorrecte ou code variante incorrect (cause 3 : mauvaise combinaison de modules, contrôler et si besoin changer les deux modules)
• E010C — Coupure durable signal 50Hz
• E0100 / E010D — Signal 50Hz non valide
• C0110 / E0110 — Défaut de communication général module de contrôle
• E0111 — Défaut de communication module de contrôle
• E0113 — Défaut de communication dépassement mémoire
• C0510 / E0510 — Défaut de communication Module Multi Media (MMB)
• E0511 — Défaut de communication User Interface (UI)
• F1001 — Contrôle de température inverter déclenché (PD1)
• F1002 — Contrôle de température inverter déclenché (PD2)
• E1009 — CTN micro-ondes, court-circuit
• E100A — CTN micro-ondes, coupure
• E100B — Coupure thermistance ER1
• E100C — Coupure thermistance ER4
• F100D — Test avec résistance fixe défectueux
• E100E — CTN micro-ondes, température trop élevée
• E1301 — Magnétron, coupure thermistance H32
• E1302 — Magnétron, court-circuit thermistance H32
• E6000 — Défaut général ventilateur magnétron BLDC
• E6100 — Défaut général ventilateur de refroidissement BLDC
• E6200 — Défaut général ventilateur de brassage BLDC
• E6400 — Défaut moteur clapet des fumées
• E6501 — Moteur bandeau défectueux
• E8020 — Défaut de déverrouillage (relais K26 ne commute pas)
• E8030 — Température trop élevée, four non verrouillé
• E8401 — Sonde de température four, coupure
• E8402 — Court-circuit sonde de température four
• F8403 — Valeur de résistance fixe sonde de température du four
• Éclairage clignote dans le four (tactage 1,5s) — Software du module de régulation défaillant
• Éclairage dans le four allumé en permanence — Software du module de régulation défaillant
• Les touches ne fonctionnent pas, le code variante ne peut pas être paramétré — dernière étape si les précédentes ne résolvent pas
• Affichage reste sombre — uniquement si la tension mesurée sur le connecteur est absente

Liste d’appareils concernés (Non exhaustive)

-Information à relever sur la plaque signalétique apposée sur l’encadrement de porte, le flanc ou au dos de l’appareil.

B25CR22N1/35 B25CR22N1/40 B25CR22N1/43 B25CR22N1/49 B25CR22N1/50 B25CR22N1/58 B25CR22N1/60 B25CR22N1/63 B25CR22N1/75 B25CR22N1B/35 B25CR22N1B/40 B25CR22N1B/43 B25CR22N1B/50 B25CR22N1B/58 B25CS22N1K/35 B25CS22N1K/40 B25VR22N1/35 B25VR22N1/40 B25VR22N1/43 B25VR22N1/49 B25VR22N1/58 B25VR22N1/60 B25VR22N1/63 B25VR22N1/68 B27CR22N1/35 B27CR22N1/40 B27CR22N1/43 B27CR22N1/50 B27CR22N1/58 B27CR22N1/60 B27CR22N1/75 B27CR22N1B/35 B27CR22N1B/40 B27CR22N1B/43 B27CR22N1B/50 B27CR22N1B/58 B27CR22N1B/60 B27CR22N1B/63 B27CR22N1B/75 B27CS22N1/35 B27CS22N1/40 B27CS22N1/43 B27CS22N1/50 B27CS22N1/58 B27CS22N1/60 B27CS22N1/63 B27CS22N1/75 B27CS24N1/35 B27CS24N1/40 B27CS24N1/43 HB672GBS1/35 HB672GBS1/40 HB672GBS1/49 HB672GBS1/58 HB672GBS1/60 HB672GBS1/63 HB672GBS1/75 HB672GBS1B/35 HB672GBS1B/40 HB672GBS1B/50 HB672GBS1B/60 HB672GBS1B/63 HB672GBS1B/75 HB672GBS1F/35 HB672GBS1F/40 HB672GBS1F/49 HB672GBS1F/50 HB672GBS1F/58 HB672GBS1F/63 HB672GBS1S/35 HB672GBS1S/40 HB672GBS1S/49 HB672GBS1S/79 HB672GBS1S/82 HB672GBW1F/35 HB672GBW1F/40 HB672GBW1F/49 HB672GBW1F/50 HB672GBW1F/58 HB672GBW1S/35 HB672GBW1S/40 HB672GBW1S/58 HB672GBW1S/63 HB672GBW1S/75 HB672GCS2S/35 HB672GCS2S/40 HB672GCS2S/49 HB672GCS2S/50 HB672GCS2S/58 HB672GCS2S/60 HB672GCS2S/75 HB672GCW2S/35 HB672GCW2S/40 HB672GCW2S/49 HB672GCW2S/58 HB672GCW2S/60 HB672GCW2S/63 HB672GCW2S/75 HB673G0S1A/35 HB673G0S1A/40 HB673G0S1A/47 HB673G0S1A/49 HB673G0S1A/63 HB673G0S1A/75 HB673G0S1A/78 HB673GBS1/35 HB673GBS1/40 HB673GBS1/49 HB673GBS1/50 HB673GBS1/58 HB673GBS1/60 HB673GBS1/63 HB673GBS1/75 HB673GBS1F/35 HB673GBS1F/40 HB673GBS1F/50 HB673GBS1F/58 HB673GBW1F/35 HB673GBW1F/40 HB673GBW1F/50 HB673GBW1F/60 HB673GBW1F/63 HB673GBW1F/75 HB673GCS1S/35 HB673GCS1S/40 HB673GCS1S/49 HB673GCS1S/50 HB673GCS1S/58 HB673GCS1S/63 HB673GCS1S/75 HB673GCS2S/35 HB673GCS2S/40 HB673GCS2S/49 HB673GCS2S/50 HB673GCS2S/58 HB673GCS2S/63 HB673GCS2S/75 HB674GBS1/35 HB674GBS1/40 HB674GBS1/49 HB674GBW1/35 HB674GBW1/40 HB674GBW1/49 HB674GBW1/50 HB674GBW1/58 HB674GBW1/60 HB674GBW1/63 HB674GBW1/75 HB674GCS1S/35 HB674GCS1S/40 HB674GCS1S/58 HB674GCS1S/63 HB674GCS1S/75 HB675G0S1/35 HB675G0S1/40 HB675G0S1/50 HB675G0S1/58 HB675G0S1/60 HB675G0S1/63 HB675G0S1/75 HB675G0S1F/35 HB675G0S1F/40 HB675G0S1F/49 HB675G0S1F/50 HB675G0S1F/58 HB675G0S1F/60 HB675G0S1F/63 HB675G0S1F/75 HB675G0S1S/35 HB675G0S1S/37 HB675G0W1F/35 HB675G0W1F/40 HB675G0W1F/50 HB675G0W1F/58 HB675G3S1/35 HB675G3S1/40 HB675G3S1/49 HB675G3S1/50 HB675G3S1/58 HB675G3S1/60 HB675G3S1/75 HB675G5S1F/35 HB675G5S1F/40 HB675G5S1F/49 HB675G5S1F/50 HB675G5S1F/58 HB675G5S1F/60 HB675G5S1F/63 HB675G5S1F/75 HB675G5W1F/35 HB675G5W1F/40 HB675G5W1F/49 HB675G5W1F/50 HB675G5W1F/58 HB675G5W1F/60 HB675G5W1F/63 HB675G5W1F/75 HB675GBS1/35 HB675GBS1/40 HB675GBS1/49 Itelem HB675GBS1F/35 HB675GBS1F/40 HB675GBS1F/49 HB675GBS1F/50 HB675GBS1F/58 HB675GBS1J/35 HB675GBS1J/40 HB675GBS1J/50 HB675GBS1J/58 HB675GBW1/35 HB675GBW1F/35 HB675GBW1F/40 HB675GBW1F/50 HB675GBW1F/58 HB675GBW1W/35 HB675GBW1W/40 HB675GBW1W/63 HB675GIS1S/35 HB675GIS1S/37 HB675GIS1S/40 HB675GIS1S/49 HB675GIS1S/50 HB675GIS1S/58 HB675GIS1S/60 HB675GIS1S/63 HB675GIS1S/75 HB675GIW1S/35 HB675GIW1S/37 HB675GIW1S/40 HB675GIW1S/49 HB675GIW1S/50 HB675GIW1S/58 HB675GIW1S/63 HB675GIW1S/75 HB676G0S1/35 HB676G0S1/40 HB676G0S1/49 HB676G0S1/50 HB676G0S1/58 HB676G0S1/60 HB676G0S1/75 HB676G0S1F/35 HB676G0S1F/40 HB676G0S1F/49 HB676G0S1F/50 HB676G0S1F/58 HB676G0W1/35 HB676G0W1/40 HB676G0W1/50 HB676G0W1/58 HB676G0W1/60 HB676G0W1/63 HB676G0W1/75 HB676G5S1/35 HB676G5S1/40 HB676G5S1/58 HB676G5S1/63 HB676G5S6/35 HB676G5S6/40 HB676G5S6/41 HB676G5S6/49 HB676G5S6/50 HB676G5S6/58 HB676G5S6/63 HB676G5S6/75 HB676G8S1W/35 HB676G8S1W/40 HB676G8S1W/58 HB676G8S1W/60 HB676G8S1W/63 HB676G8W1W/40 HB676G8W1W/63 HB676GBS1/35 HB676GBS1/40 HB676GBS1/49 HB676GBW1/35 HB676GBW1Y/35 HB676GBW1Y/40 HB676GBW1Y/49 HB676GBW1Y/50 HB676GBW1Y/60 HB676GBW1Y/63 HB676GBW1Y/75 HB676GCS1W/35 HB676GCS1W/40 HB676GCS1W/49 HB676GCS1W/50 HB676GCS1W/58 HB676GCS1W/60 HB676GCS1W/63 HB676GCS1W/75 HB874GCB1S/35 HB874GCB1S/40 HB874GCB1S/49 HB874GCB1S/50 HB874GCB1S/58 HB874GCB1S/60 HB874GCB1S/63 HB874GCB1S/75 HB874GCW1S/35 HB874GCW1S/49 HB874GCW1S/50 HB874GCW1S/58 HB874GCW1S/63 HB874GCW1S/75 HB875G5B1/35 HB875G5B1/40 HB875G5B1/49 HB875G5B1/50 HB875G5B1/58 HB875G5B1/60 HB875G5B1/63 HB875G5B1/75 HB875G8B1/35 HB875G8B1/40 HB875G8B1/49 HB875G8B1/50 HB875G8B1/58 HB875G8B1/60 HB875G8B1/63 HB875G8B1/75 HB875G8B1A/40 HB875G8B1A/47 HB875G8B1A/49 HB875G8B1A/50 HB875G8B1A/58 HB875G8B1A/60 HB875G8B1A/63 HB875G8B1A/75 HB875G8S1/35 HB875GDB1A/40 HB875GDB1A/49 HB875GDB1A/50 HB875GDB1A/58 HB875GDB1A/60 HB875GDB1A/63 HB875GDB1A/75 HB876G5B6/35 HB876G5B6/40 HB876G5B6/41 HB876G5B6/49 HB876G5B6/50 HB876G5B6/58 HB876G5B6/60 HB876G5B6/63 HB876G5B6/75 HB876G8B6/35 HB876G8B6/40 HB876G8B6/41 HB876G8B6/49 HB876G8B6/50 HB876G8B6/58 HB876G8B6/60 HB876G8B6/63 HB876G8B6/75 HB876G8S6/35 HB876G8S6/40 HB876G8S6/41 HB876GDB6S/35 HB876GDB6S/40 HB876GDB6S/49 HB876GDB6S/50 HB876GDB6S/58 HB876GDB6S/60 HB876GDB6S/63 HB876GDB6S/75 HB876GDS1S/35 HB876GDS6S/35 HB876GDW6S/35 HB876GDW6S/41 HB876GDW6S/50 HB876GDW6S/58 HB876GDW6S/63 HB876GDW6S/75 HBG6725S1I/35 HBG6725S1I/40 HBG6725S1I/63 HBG6725S1I/75 HBG6725S2/35 HBG6725S2/40 HBG6725S2/49 HBG6725S2/50 HBG6725S2/58 HBG6725S2/60 HBG6725S2/63 HBG6725S2/75 HBG672BB1F/35 HBG672BB1F/40 HBG672BB1F/49 HBG672BB1F/50 HBG672BB1F/63 HBG672BB1F/75 HBG672BB1S/35 HBG672BB1S/40 HBG672BB1S/49 HBG672BB1S/50 HBG672BB1S/58 HBG672BB1S/60 HBG672BB1S/63 HBG672BB1S/75 HBG672BS1/35 HBG672BS1/40 HBG672BS1/49 HBG672BS1/50 HBG672BS1/58 HBG672BS1/60 HBG672BS1/63 HBG672BS1/75 HBG672BS1/79 HBG672BS1/82 HBG672BS1A/35 HBG672BS1A/40 HBG672BS1A/47 HBG672BS1A/49 HBG672BS1A/50 HBG672BS1A/58 HBG672BS1A/60 HBG672BS1A/63 HBG672BS1A/75 HBG672BS1F/35 Pieces-tout-electromenager.com HBG672BS1F/49 HBG672BS1F/50 HBG672BS1F/58 HBG672BS1F/63 HBG672BS1F/75 HBG672BS1F/79 HBG672BS1F/82 HBG672BW1F/35 HBG672BW1F/40 HBG672BW1F/49 HBG672BW1F/50 HBG672BW1F/58 HBG672BW1F/63 HBG672BW1F/75 HBG672BW1S/35 HBG672BW1S/40 HBG672BW1S/49 HBG672BW1S/50 HBG672BW1S/58 HBG672BW1S/60 HBG672BW1S/63 HBG672BW1S/75 HBG672CB1S/35 HBG672CB1S/40 HBG672CS1S/35 HBG672CS1S/40 HBG672CW1S/35 HBG672CW1S/40 HBG6730S1/35 HBG6730S1/40 HBG6730S1/50 HBG6730S1/58 HBG6730S1/60 HBG6730S1/63 HBG6730S1/75 HBG673BB1B/35 HBG673BB1F/35 HBG673BB1F/40 HBG673BB1F/49 HBG673BB1F/50 HBG673BB1F/58 HBG673BS1B/58 HBG673BS1F/35 HBG673BS1F/40 HBG673BS1F/49 HBG673BW1F/35 HBG673BW1F/40 HBG673BW1F/49 HBG673BW1F/50 HBG673BW1F/58 HBG673CS1S/35 HBG673CS1S/40 HBG673CS1S/49 HBG674BB1B/35 HBG674BB1B/40 HBG674BB1B/49 HBG674BB1B/50 HBG674BB1B/58 HBG674BB1B/60 HBG674BB1B/63 HBG674BS1B/35 HBG674BS1B/40 HBG674BS1B/49 HBG674BS1B/50 HBG674BS1B/58 HBG674BS1B/60 HBG674BS1B/63 HBG674BS1B/75 HBG6750B1/35 HBG6750B1/40 HBG6750B1/49 HBG6750B1/50 HBG6750B1/58 HBG6750B1/60 HBG6750B1/63 HBG6750B1/75 HBG6750S1/35 HBG6750S1/40 HBG6750S1/49 HBG6750S1/50 HBG6750S1/58 HBG6750S1/60 HBG6750S1/63 HBG6750S1/75 HBG6750S1F/35 HBG6750S1F/40 HBG6750S1F/50 HBG6750S1F/58 HBG6750W1/35 HBG6750W1/40 HBG6750W1/50 HBG6750W1/58 HBG6750W1/60 HBG6750W1/63 HBG6750W1/75 HBG6751S1S/35 HBG6751S1S/37 HBG6751S1S/40 HBG6751S1S/49 HBG6751S1S/50 HBG6751S1S/58 HBG6751S1S/60 HBG6751S1S/63 HBG6751S1S/75 HBG6751S2S/35 HBG6751S2S/40 HBG6751S2S/50 HBG6751S2S/58 HBG6751S2S/60 HBG6751S2S/63 HBG6751S2S/75 HBG6753S1/35 HBG6753S1/40 HBG6753S1/50 HBG6753S1/58 HBG6753S1A/35 HBG6753S1A/40 HBG6753S1A/47 HBG6753S1A/49 HBG6753S1A/50 HBG6753S1A/60 HBG6753S1A/63 HBG6753S1A/75 HBG6755B1F/35 HBG6755B1F/40 HBG6755B1F/49 HBG6755B1F/58 HBG6755S1F/35 HBG6755S1F/40 HBG6755S1F/49 HBG6755S1F/50 HBG6755S1F/58 HBG6755W1F/35 HBG6755W1F/40 HBG675BB1/35 HBG675BB1/40 HBG675BB1/49 HBG675BB1/50 HBG675BB1/58 HBG675BB1/60 HBG675BB1/63 HBG675BB1/75 HBG675BB1F/35 HBG675BB1F/40 HBG675BB1F/49 HBG675BB1F/50 HBG675BB1F/58 HBG675BS1/35 HBG675BS1/40 HBG675BS1/49 HBG675BS1/58 HBG675BS1/60 HBG675BS1/63 HBG675BS1/75 HBG675BS1B/35 HBG675BS1B/40 HBG675BS1B/49 HBG675BS1B/50 HBG675BS1B/58 HBG675BS1B/63 HBG675BS1B/75 HBG675BS1F/35 HBG675BS1F/40 HBG675BS1F/49 HBG675BS1F/50 HBG675BS1F/58 HBG675BS1J/35 HBG675BS1J/40 HBG675BS1J/49 HBG675BS1J/50 HBG675BS1J/58 HBG675BS1J/60 HBG675BS1J/63 HBG675BS1J/75 HBG675BW1/35 HBG675BW1/40 HBG675BW1/49 HBG675BW1/50 HBG675BW1/58 HBG675BW1/60 HBG675BW1/75 HBG675BW1F/35 HBG675BW1F/40 HBG675CS1S/35 HBG675CS1S/40 HBG675TB1A/35 HBG675TB1A/40 HBG6760S1F/35 HBG6760S1F/40 HBG6760S1F/50 HBG6760S1F/58 HBG6760S1F/60 HBG6760S1F/63 HBG6760S1F/75 HBG6760S1F/79 HBG6760S1F/82 HBG8755B1/35 HBG8755B1/40 HBG8755B1/49 HBG8755S1/35 HBG8755S1/40 HBG8755S1/49 HBG8755S1/50 HBG8755S1/58 HBG8755S1/63 HBG8755S1/75 HR675GBS1/35 HR675GBS1/40 HR675GBS1/52 HR675GBS1/58 HR675GBS1/63 HR675GBS1/68 HR675GBS1/75 HR675GBS1/79 HR675GBS1/82 HR675GBS1S/35 HR675GBS1S/40 HRG6753S2/35 HRG6753S2/40
