Pompe de cyclage lave-vaisselle Whirlpool Bauknecht Laden

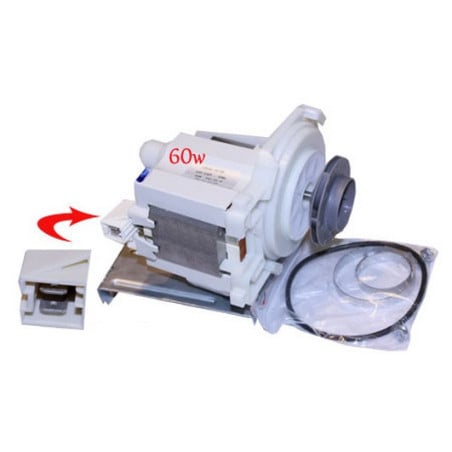

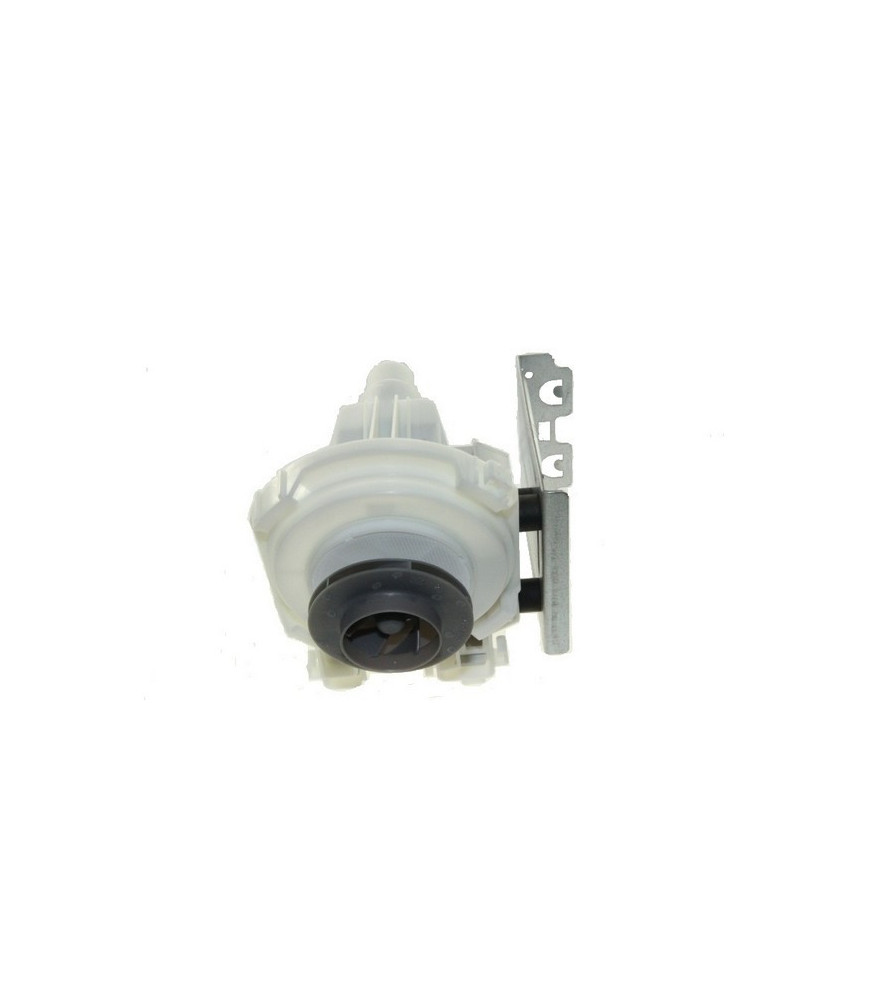

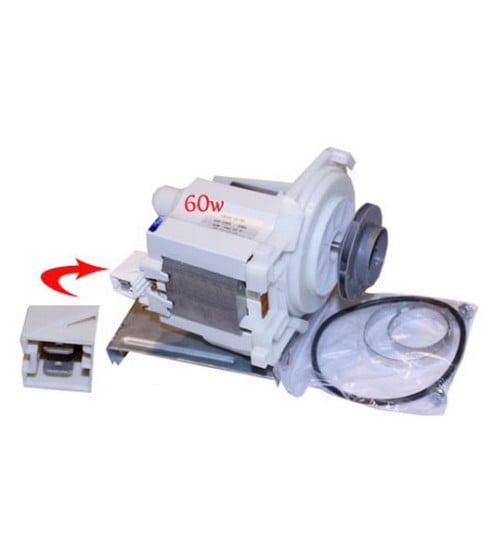

La pompe de cyclage référence 480140102397, également appelée pompe de lavage, est un composant présent dans les lave-vaisselle du groupe Whirlpool et ses marques associées. Autres références: 480131000095, 480131000168 et C00341657.

Fonctionnalités

• Aspire l'eau du fond de la cuve du lave-vaisselle
• Propulse l'eau vers les bras d'aspersion pour laver la vaisselle
• Assure la circulation de l'eau pendant le cycle de lavage
• Permet une utilisation optimale de la lessive en la faisant circuler
• Contribue à l'action mécanique du lavage par la pression de l'eau

Symptômes de panne

• Pas d'aspersion d'eau sur la vaisselle
• Défaut de remplissage en eau (Force de la pompe scrutée)
• Vaisselle mal lavée
• Bruit anormal (ronronnement, grincement, sifflement)
• Fuite d'eau (souvent au niveau de l'axe)
• Code erreur spécifique sur l'afficheur (Chauffe ou sonde de température)

• Blocage mécanique de la turbine par un détritus

• Défaut de remplissage (sur certains modèles)

Pour en savoir plus sur cette pièce, consultez notre tutoriel de dépannage sur les pompes de cyclage, rédigé par notre technicien.

Remarque technique : Ce type de pompe nécessite la présence d'une charge en eau pour tourner correctement. A défaut des arrêts et reprises de rotation moteur peuvent se faire voir laissant penser à une pièce hors service.

Liste d’appareils concernés (Non exhaustive)

-Information à relever sur la plaque signalétique apposée sur le tour de porte de l’appareil.
-Code usine (Commençant par 85), suivi de la référence commerciale du lave-vaisselle.

851112001002 ADG120 851112001003 ADG120 851112001013 ADG120S 851112001014 ADG120S 851114001002 ADG140 854248201000 ADG4820FD 854248201001 ADG4820FD 854248201002 ADG4820FD 854248201020 ADG4820NB 854248201021 ADG4820NB 854248201022 ADG4820NB 854248201023 ADG4820NB 854248201010 ADG4820S 854248201011 ADG4820S 854248201012 ADG4820S 854248201013 ADG4820S 854248201030 ADG4820WH 854248201031 ADG4820WH 854248201032 ADG4820WH 854248201033 ADG4820WH 854285101932 ADG5820FD 854285101982 ADG5820IX 854285101983 ADG5820IX 854285129992 ADG5820NB 854285129993 ADG5820NB 854285101003 ADG5820WH 851175938901 ADG6000 854263461000 ADG63426SFD 851165010002 ADG6500 851165010003 ADG6500 854265701000 ADG6570SDIX 854265701001 ADG6570SDIX 854269010000 ADG6900 854269010001 ADG6900 854269010002 ADG6900 854207501030 ADG7530AV 854207501031 ADG7530AV 854207501530 ADG7530AV 854207501531 ADG7530AV 854207501000 ADG7530IX 854207501001 ADG7530IX 854207501002 ADG7530IX 854207501500 ADG7530IX 854207501501 ADG7530IX 854207501010 ADG7530NB 854207501011 ADG7530NB 854207501510 ADG7530NB 854207501511 ADG7530NB 854207501020 ADG7530WH 854207501021 ADG7530WH 854207501022 ADG7530WH 854207501520 ADG7530WH 854207501521 ADG7530WH 854278229011 ADG7820FD 854278229002 ADG7820IX 854278229032 ADG7820NB 854278229020 ADG7820WH 854278229021 ADG7820WH 854278229022 ADG7820WH 851155010880 ADG8800IX 851155010881 ADG8800IX 851155010882 ADG8800IX 854293401841 ADG9340/4 854294201860 ADG9420 854294201861 ADG9420 854295001002 ADG9500 854295001003 ADG9500 854295001010 ADG9510 854295001011 ADG9510 854295001510 ADG9510 854295001511 ADG9510 854295001512 ADG9510 854298229000 ADG9820FD 854298229001 ADG9820FD 854298229010 ADG9820IX 854298229011 ADG9820IX 854280229010 ADGBabyFD 854280229011 ADGBABYFD 854280229000 ADGBabyS 854280229001 ADGBABYS 854544438953 ADL444/1IX 854544438954 ADL444/1IX 854544438973 ADL444/1NB 854544438974 ADL444/1NB 851000529532 ADP4549/1IX 851000529533 ADP4549/1IX 851000529520 ADP4820 851000529521 ADP4820 851000529522 ADP4820 851000529523 ADP4820 851000529010 ADP4820SL 851000529011 ADP4820SL 851000529012 ADP4820SL 851000529123 ADP4821IX 851000529124 ADP4821IX 851000529570 ADP4822IS 851000529571 ADP4822IS 851000529513 ADP4949WH 851000529514 ADP4949WH 857303101200 ADP5350PC 857303101201 ADP5350PC 851000529113 ADP5820WH 851000529114 ADP5820WH 857303129260 ADP5822 857303129261 ADP5822 851163229021 ADP6320WH 851163229022 ADP6320WH 851134001000 ADP6332IX 851134001001 ADP6332IX 851163329320 ADP6332IX 851163329321 ADP6332IX 851163329230 ADP6332SL 851161301020 ADP6332WH 851161301021 ADP6332WH 851163316020 ADP6332WH 851163316021 ADP6332WH 851163329020 ADP6332WH 851163329021 ADP6332WH 851163329220 ADP6332WH 851163329221 ADP6332WH 851163361020 ADPU6331IX 851163361021 ADPU6331IX 851153061020 ADPU6331WH 851153061021 ADPU6331WH 851163401020 ADPU63426SIX 851163461020 ADPU63426SWH 851156161003 ADPY1110WH 851156161004 ADPY1110WH 851156161533 ADPY1120IX 851156161534 ADPY1120IX 851156161543 ADPY1120WH 851156161544 ADPY1120WH 851156161552 ADPY1320BL 851156161492 ADPY1320IX 851156161502 ADPY1320WH 851156161482 ADPY2320WH 851000529622 C1005 851000529623 C1005 851000529363 C1009BL 851000529353 C1009BR 851000529354 C1009BR 857303129200 C1802BL 857303129201 C1802BL 851063329120 C6332LDWH 851063329121 C6332LDWH 851063329020 C6332WH 851063329021 C6332WH 857303022112 GSF5300WH 857303022113 GSF5300WH 854840022000 GSI4000SDIN 854840022010 GSI4000SDIN 854840022011 GSI4000SDIN 854840022012 GSI4000SDIN 854840022013 GSI4000SDIN 854655116561 GSI5513IN 854655116562 GSI5513IN 854655136561 GSI5513IN 854655136562 GSI5513IN 854655116571 GSI5513SW 854655116572 GSI5513SW 854655136571 GSI5513SW 854655136572 GSI5513SW 854655116581 GSI5513WS 854655116582 GSI5513WS 854655136581 GSI5513WS 854655136582 GSI5513WS 854695001501 GSIK5000IN 854695001502 GSIK5000IN 854666201540 GSIK5010IN 854666201541 GSIK5010IN 854666201740 GSIK5010IN 854666201741 GSIK5010IN 854850122830 GSIK5010SDIN 854850122831 GSIK5010SDIN 854850222530 GSIK5020SDIN 854850222531 GSIK5020SDIN 854850222830 GSIK5020SDIN 854850222831 GSIK5020SDIN 854850222832 GSIK5020SDIN 854865122980 GSIK6518/1BR 854865122981 GSIK6518/1BR 854865122941 GSIK6518/1IN 854865122970 GSIK6518/1IN 854865122971 GSIK6518/1IN 854865122990 GSIK6518/1WS 854865122991 GSIK6518/1WS 854840001551 GSIS4000IN 854840001552 GSIS4000IN 854655016511 GSX5513 854655016512 GSX5513 854655016521 GSX5513 854655016522 GSX5513 854875222811 GSXA7525/1 854674201501 GSXK5000 854674201502 GSXK5000 854674201520 GSXK5010 854674201521 GSXK5010 854674201720 GSXK5010 854674201721 GSXK5010 854850201500 GSXK5020SD 854850201501 GSXK5020SD 854850201800 GSXK5020SD 854850201801 GSXK5020SD 854852201500 GSXK5220SD 854852201801 GSXK5220SD 851164201000 GSXK6420 851164201001 GSXK6420 851164201002 GSXK6420 854840001501 GSXS4000 854840001502 GSXS4000 851000538560 LPA58EG/SL 851000538561 LPA58EG/SL 851000538562 LPA58EG/SL 851000538570 LPA58EG/WH 851000538571 LPA58EG/WH 851000538572 LPA58EG/WH 851110029002 LVI100FD 851110029003 LVI100FD 851110029013 LVI100IX 851164138581 W64/2IX 851164138582 W64/2IX 851164138591 W64/2NB 851164138592 W64/2NB 851164138561 W64/2WH 851164138562 W64/2WH 854275438580 WP75/5 854279238540 WP75/5LD 854279238940 WP75/5LD 854279238941 WP75/5LD 854285038001 WP85

Autres modèles

851114001000 ADG140 851114001001 ADG140DI 851135201865 ADG352/1IX 854285101930 ADG5820FD 854285101931 ADG5820FD 854285101980 ADG5820IX 854285101981 ADG5820IX 854285129990 ADG5820NB 854285129991 ADG5820NB 854285101000 ADG5820WH 854285101001 ADG5820WH 851112301140 ADG610 851112301141 ADG610 851112301150 ADG610NB 851112301151 ADG610NB 851112301130 ADG610WH 851112301131 ADG610WH 851163701882 ADG6370/1IX 854274361812 ADG7430 851176610832 ADG7665/1 854278229010 ADG7820FD 854278229000 ADG7820IX 854278229001 ADG7820IX 854278229030 ADG7820NB 854278229031 ADG7820NB 851179910902 ADG7995 851181910874 ADG8192/1IX 851181910001 ADG8196IX 851181910021 ADG8196NB 851181910010 ADG8196WH 851181910011 ADG8196WH 854283701721 ADG8417IX 854285101891 ADG8516/1IX 854285101892 ADG8516/1IX 854285101882 ADG8516/1NB 854285101881 ADG8516/1NB 854285101711 ADG8517/1IX 854285101721 ADG8517/1NB 854285101731 ADG8517/1WH 854285129980 ADG8530FD 854285129981 ADG8530FD 854285129970 ADG8530IX 854285129950 ADG8530NB 854285129960 ADG8530WH 854285129930 ADG8531FD 854285129940 ADG8531NB 854285129800 ADG8531WH 854285361832 ADG8532/2 854285361842 ADG8532/2 854285361812 ADG8532/2 851187310892 ADG8730/3IX 851187410000 ADG8740IX 851187410001 ADG8740IX 851192110841 ADG9210 854293401801 ADG9340/3 854294101901 ADG9416/1 854294201711 ADG9427/2 854295201722 ADG9527/1 854295201731 ADG9527/2 854299201742 ADG9928/1 854299201743 ADG9928/1 854299938911 ADG9994/1 851112301102 ADGBABY 851112301120 ADGBABYNB 851112301121 ADGBABYNB 851112301110 ADGBABYWH 851112301111 ADGBABYWH 854285101750 ADGR8507 854293401850 ADGR9330 854294101850 ADGR9406 854295201750 ADGR9517 851145601102 ADGSPACE 851145601002 ADGSPACEIX 851145601120 ADGSPACENB 851145601110 ADGSPACEWH 851175310981 ADP3T 851175310901 ADP3T 851000529530 ADP4549/1IX 851000529531 ADP4549/1IX 851151629932 ADP5778 851156761821 ADP7640IX 851156761831 ADP7640WH 851156161551 ADPY1320BL 851156161550 ADPY1320BL 851156161490 ADPY1320IX 851156161491 ADPY1320IX 851156161500 ADPY1320WH 851156161501 ADPY1320WH 851156161480 ADPY2320WH 851156161481 ADPY2320WH 857303022110 GSF5300WH 857303022111 GSF5300WH 854664101832 GSIK6415/1IN 854864122901 GSIK6415/1IN 854864122910 GSIK6415/1IN 854864122911 GSIK6415/1IN 854865122831 GSIK6512/1IN 854865122911 GSIK6518IN 854865122921 GSIK6518WS 854665101742 GSIP6517/1IN 854665101752 GSIP6517/1SW 854665101761 GSIP6517/1WS 854665101762 GSIP6517/1WS 854865222831 GSIS6522/2IN 854674222721 GSXK7421/2 854674261712 GSXK7422 854675101741 GSXP7517/1 854250801020 PDSI5081A 854250801010 PDSI5081W 854250801000 PDSI5081X 854266138921 WP66/1 854266138922 WP66/1IX 854275438791 WP75/4LD 854276138911 WP76/1 854276138912 WP76/1 854276138921 WP76/1LD 854276138922 WP76/1LD 854278338911 WP78/3 854278338912 WP78/3 ADP4820

Autres modèles

851135201864 ADG352/1IX 851163701880 ADG6370/1IX 851163701881 ADG6370/1IX 851163701890 ADG6370/1NB 851163701891 ADG6370/1NB 851163701900 ADG6370/1WH 851163701901 ADG6370/1WH 854265661860 ADG6570IX 854265661861 ADG6570IX 854265661840 ADG6570NB 854265661841 ADG6570NB 854265661850 ADG6570WH 854265661851 ADG6570WH 854274361810 ADG7430 854274361811 ADG7430 851176610830 ADG7665/1 851176610831 ADG7665/1 851179910900 ADG7995 851179910901 ADG7995 851181910872 ADG8192/1IX 851181910873 ADG8192/1IX 851181910000 ADG8196IX 851181910020 ADG8196NB 854283101880 ADG8315/1IX 854283101881 ADG8315/1IX 854283101882 ADG8315/1IX 854283101890 ADG8315/1WH 854283101891 ADG8315/1WH 854283101892 ADG8315/1WH 854283101900 ADG8315/2IX 854283101910 ADG8315/2WH 854283701720 ADG8417IX 854285101851 ADG8515/1AV 854285101850 ADG8515/1AV 854285101840 ADG8515/1IX 854285101841 ADG8515/1IX 854285101860 ADG8515/1WH 854285101861 ADG8515/1WH 854285101960 ADG8515/2AV 854285101950 ADG8515/2IX 854285101970 ADG8515/2WH 854285101890 ADG8516/1IX 854285101880 ADG8516/1NB 854285101870 ADG8516/1WH 854285101871 ADG8516/1WH 854285101872 ADG8516/1WH 854285101900 ADG8516/2IX 854285101710 ADG8517/1IX 854285101720 ADG8517/1NB 854285101730 ADG8517/1WH 854285101740 ADG8517/2IX 854285361810 ADG8532/2IX 854285361811 ADG8532/2IX 854285361830 ADG8532/2NB 854285361831 ADG8532/2NB 854285361840 ADG8532/2WH 854285361841 ADG8532/2WH 851187310890 ADG8730/3IX 851187310891 ADG8730/3IX 851191910841 ADG9190/1 851192110840 ADG9210 854234101840 ADG9340/3 854293401800 ADG9340/3 854234101841 ADG9340/3 854293401840 ADG9340/4 854293401849 ADG9340/4 854294101830 ADG9415/2 854294101831 ADG9415/2 854294101832 ADG9415/2 854294101840 ADG9416/1 854294101900 ADG9416/1 854294101841 ADG9416/1 854294101842 ADG9416/1 854294201710 ADG9427/2 854295201810 ADG9520 854295201721 ADG9527/1 854295201720 ADG9527/1 854295201740 ADG9527/1 854295201730 ADG9527/2 854295201739 ADG9527/2 854299201741 ADG9928/1 854299201740 ADG9928/1 854299201749 ADG9928/1 851112301100 ADGBaby 851112301101 ADGBABY 851112301000 ADGBabyS 851112301001 ADGBABYS 851145601100 ADGSPACE 851145601101 ADGSPACE 851145601000 ADGSPACEIX 851145601001 ADGSPACEIX 851175310980 ADP3T 851175310900 ADP3T 851151629930 ADP5778 851151629931 ADP5778 851175310990 ADP5778IX 851175310991 ADP5778IX 854841101560 ADP6839WHSteam 854841101561 ADP6839WHSteam 851156761820 ADP7640IX 851156761830 ADP7640WH 851155238900 ADP8300 851175310970 ADPBABY 851175310971 ADPBABY 851942294001 BASICWH 854655716900 GSI5570/1IN 854655716909 GSI5570/1IN 854655716910 GSI5570/1SW 854655716920 GSI5570/1WS 854664101830 GSIK6415/1IN 854864122900 GSIK6415/1IN 854664101831 GSIK6415/1IN 854864122890 GSIK6415IN 854864122891 GSIK6415IN 854864122892 GSIK6415IN 854865122830 GSIK6512/1IN 854865122950 GSIK6518/1BR 854865122940 GSIK6518/1IN 854865122960 GSIK6518/1WS 854865122930 GSIK6518BR 854865122910 GSIK6518IN 854865122920 GSIK6518WS 854665101740 GSIP6517/1IN 854665101741 GSIP6517/1IN 854665101750 GSIP6517/1SW 854665101751 GSIP6517/1SW 854665101760 GSIP6517/1WS 854665101770 GSIP6517/2IN 854865222830 GSIS6522/2IN 854655216900 GSX5520/1 854875222810 GSXA7525/1 854673101830 GSXK7316/2 854673101831 GSXK7316/2 854673101832 GSXK7316/2 854673101840 GSXK7316/3 854674101830 GSXK7415/2 854674101831 GSXK7415/2 854674101832 GSXK7415/2 854674222720 GSXK7421/2 854674261710 GSXK7422 854674261711 GSXK7422 854675101740 GSXP7517/1 854275438790 WP75/4LD 854275438799 WP75/4LD 854285038000 WP85 851003501823 WW53/1SC
