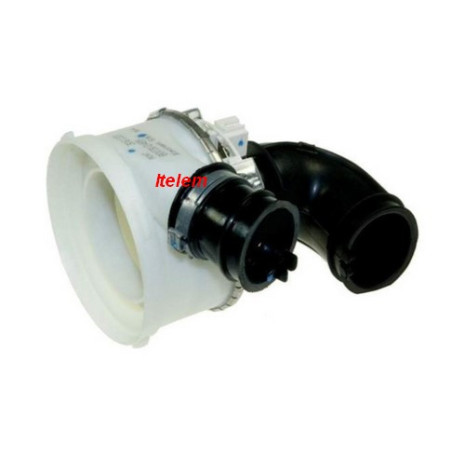

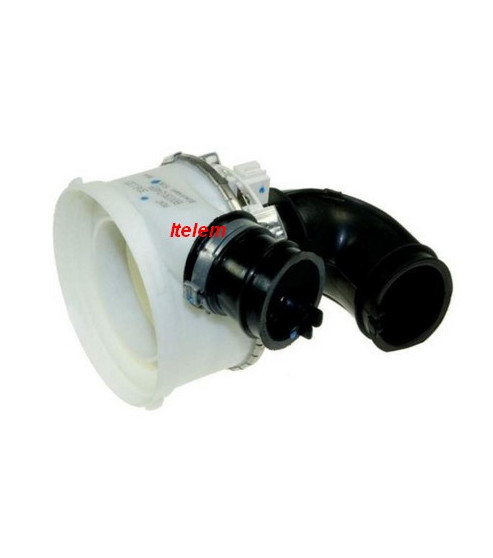

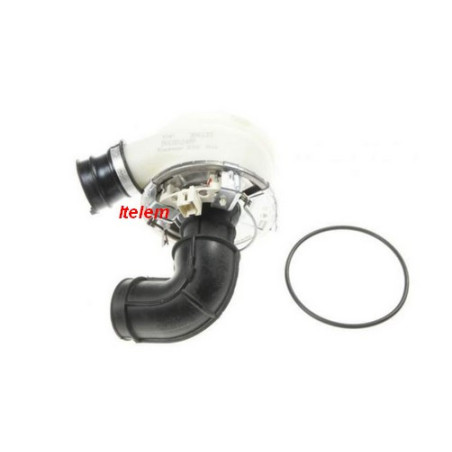

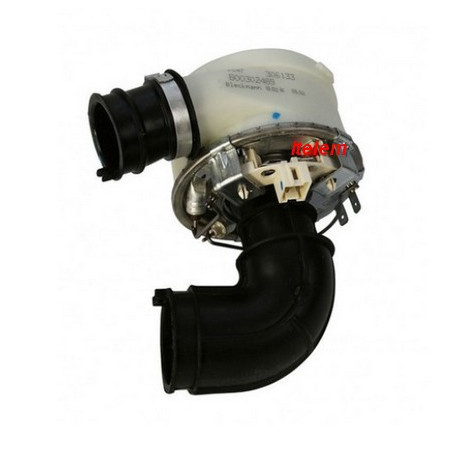

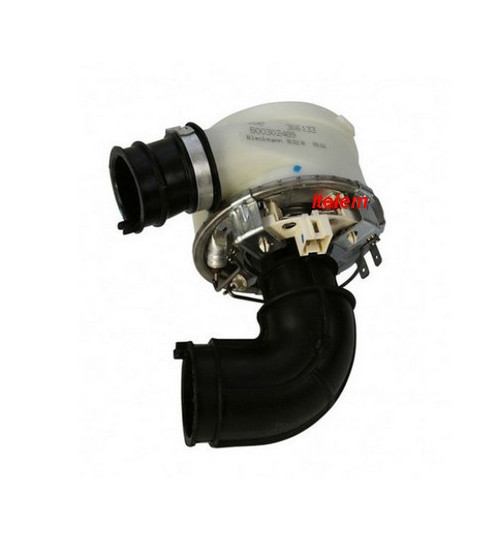

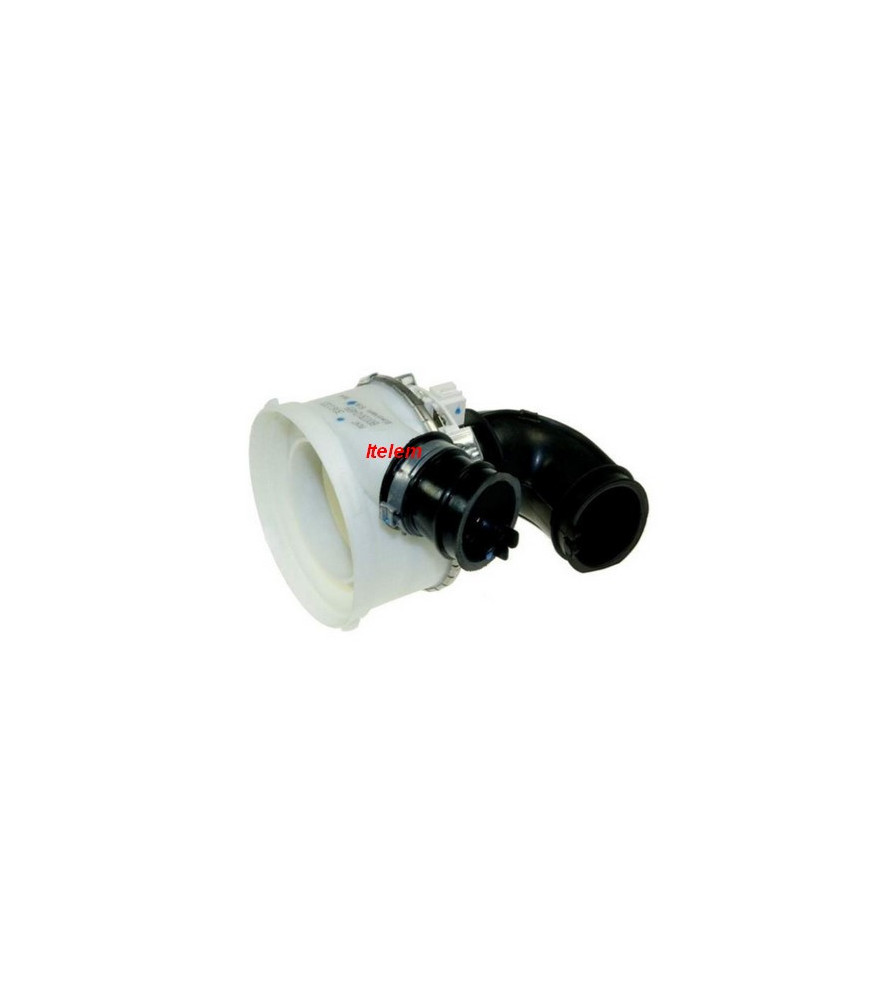

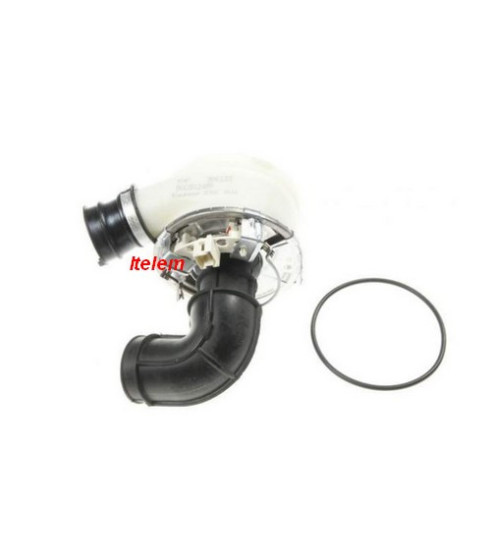

Résistance de turbine lave-vaisselle Ariston Scholtès

La résistance référence d'origine constructeur C00302489 est un élément chauffant pour lave-vaisselle du groupe Ariston et ses marques associées.

Caractéristiques :

• Puissance : 1800 watts
• Tension : 230 volts
• Il s'agit d'une pièce d'origine Ariston Indésit

• Type: blindé inox immersible
• Autres références : C00856635, 482000022217.

Fonction :

Cette résistance sert à chauffer l'eau dans le lave-vaisselle pendant les cycles de lavage. Elle est essentielle pour assurer un nettoyage efficace de la vaisselle en maintenant l'eau à la température adéquate. Elle est dotée d'une sécurité thermique de protection contre les surchauffes.

Symptômes de panne :

• L'eau ne chauffe pas ou pas suffisamment pendant les cycles de lavage
• La vaisselle n'est pas correctement nettoyée, surtout pour les taches grasses
• Cycles de lavage plus longs que d'habitude
• L'appareil disjoncte au niveau du différentiel
• Affichage d'un code panne par l'électronique

Conseil technique:

Cette résistance est embarquée directement sur le pompe de cyclage du lave-vaisselle. Si les parois intérieures métalliques sont recouvertes de calcaire, il est impératif d'effectuer un réglage de régénération en fonction de la dureté de l'eau qui entre dans l'appareil. Ces dépôts calcaires sont en effet la cause principale de la mise en panne de celle-ci par surchauffe. Nous proposons un tutoriel pour aider à diagnostiquer les pannes sur les résistances de lave-vaisselle en consultation, rédigé par notre technicien. L'ensemble pompe et résistance est également proposé par le constructeur.

Liste d’appareils concernés (Non exhaustive)
-Information à relever sur la plaque signalétique apposée sur le tour de porte de l’appareil.

9BRVW6002A/2 ADG361 ADG402 ADG422 ADG422IX ADG462 ADG522IX ADG522UK ADG522X ADG562X ADP361WH ADP402IX ADP402WH ADP422IX ADP422WH ADP502IXUK ADP522IX ADP522WH ADPU402WH ADPU502IX ADPU502WH AFE1B16 AFE1B16X AIC3C26C BBC3B+26X BBC3C26PFXA BBC3C26X BBC3C32X BBO3T321LMXA BBO3T3236PMX BBO3T332X BBO3T333DLMIA BBOPLATINUM6 BCBC3C26BCH BCBC3C26X BCBO3T121PI BCBO3T122PXCH BCBO3T1236PXCH BCBO3T333DLI BCBO3T333DLXCH BCIC3C26E BCIC3C26ECH BCIC3C26ES BCIC3C26ESCH BCIO3O33DEL BCIO3O33DELS BCIO3T121PE BCIO3T122PECH BCIO3T122PESCH BCIO3T1236PECH BCIO3T1236PESCH BCIO3T123PFE BCIO3T132PECH BCIO3T132PESCH BCIO3T323PE6 BCIO3T333DELCH BCIO3T333DELSCH BCIO3T344DEL BFC3B+26 BFC3C26 BFC3C26PFA BFC3C26PFIS BFC3C26PFXIS BFC3C32 BFO3T132CH BFO3T323P6MX BFO3T332A BFO3T333DLMX BIC3B+26 BIC3C26 BIC3C26PF BIC3C32 BIO3T323P6A BIO3T323PE6M BIO3T332E BIO3T333DELM BIOPLATINUM6 BKBC3C26X BKCIC3C26F BKCIC3C26P BKFC3C26 BKIC3C26 BKIO3T321LMXA BKUC3C26X BKUO3T334DLMXA BSUO3O24X BUC3B+26X BUC3C26CH BUC3C26X BUC3C32X BUO3O34D BUO3T122P BUO3T122PX BUO3T323P6M BUO3T323P6MX BUO3T332X BUO3T333DXA BUOPLATINUM6 CBSBO3C22X CBSIO3C22 DDFG26B17EU DDFG26B17SEU DDFP58B16EU DFG26B16FR DFG26B16NXFR DFG26B17FR DFG26T16FR DFP27B+96Z DFP27B16FR DFP27B16NXFR DFP27T94AEU DFP27T94AFR DFP27T94ANXEU DFP27T94ASFR DFP27T94AUK DFP27T94ZUK DFP28B16FR DFP58B+96EU DFP58B+96NXEU DFP58B16FR DFP58M16CEX60HZ DFP58M16NXCEX60HZ DFP58M94AAUS DFP58M94ANXAUS DFP58T1NXUKEX DFP58T32CAEU DFP58T92CANXSK DFP58T92CASK DFP58T93ANXSK DFP58T93ASK DFP58T94AEU DFP58T94AUK DFP58T94CANXEU DFP58T94CANXIT DFP58T94Z DFP58T94ZUK DIF66B1AEU DIF66T1AEU DIF66T9CAEU DIFP 6B+9EU DIFP28T9AEU DIFP28T9AEX60HZ DIFP28T9AUK DIFP28TH9AEU DIFP28TH9ALEU DIFP48T9ALEU DIFP68B1AEU DIFP68B1EU DIFP68T1AEU DIFP8B+96Z DIFP8T94Z DIFP8T96ZUK DISR57M17CALEU DISR57M94CAEU DISR57M96Z DISR57M96ZUK DPG26T9ANXEU DPG66B1KEU DPG66B1NXEU DPG66T1AKEU DPG66T1ANXEU DPG67B1NXEU DPP48T9ANXEU DSR26B17 DSR26B17NX DSR26B7FR DSR26B7NXFR DSR57H96Z DSR57H96ZS DSR57M17 DSR57M17NX DSR57M94AEU DSR57M94ASEU DSR57M96ZUK DSR57T94CAEU DSR57T94CASEU EDFG26B16KFR EDIF66B1EU EDIFP28T9AEU EDIFP68B1AEU EDPG66B1NXEU EDPG67B1KEU EDPG67B1NXEU ELTB6M124EU ELTF11M121CEU ELTF11M121CLEU FDEF33121G FDEF33121P FDEF33121V FDEF51110P FDEF51110X FDFAO32121K FDFAO32121X FDFET33121G FDFET33121K FDFET33121P FDFET33121V FDFF31111G FDFF31111K FDFF31111P FDFGREEN4413 FDFGREEN44131P FDFSM31111G FDFSM31111P FDFSM33121P FDLET31020K FDLET31120G FDLET31120P FDUD43133P FDUD43133X FDUD44110P FDUD44110X FDUD51110P FDUD51110X FDW614D7PA++ GCF725WH GCI4772IN GCI826IX GCIC3C26 GCX4762 GCX5874 GCX723 GCX825 GIC3C26 GIE2B16 GL4588 GL6033 GL6088 HAFC2B+26SVU HAFC2B+26SVUK HAFC2B+26UK HBC2B+26B HBC2B+26X HBC3C24FX HBO3C21WX HBO3C22WX HBO3T21W HBO3T21WB HBO3T21WX HDB4B116EU HDFC2B+26SVU HDFC2B+26SVUK HDFC2B+26UK HDFO3C24WCUK HDFO3C24WCXU HDFO3C24WCXUK HDS6B117EU HEIC3C26CUK HEIO3C23WF HFC2B+26 HFC2B+26CUK HFC2B+26X HFC3B+26 HFC3C24FX HFC3C24X HFC3C26 HFC3C26CX HFC3C26F HFC3C26FX HFC3C26PF HFC3C26PFX HFC3C26SV HFC3C26WSVUK HFC3C26WUK HFC3C26X HFO3C21WC HFO3C22W HFO3C22WX HFO3C23WX HFO3C24W HFO3C24WX HFO3O32WCX HFO3O32WGCUK HFO3P23WLUK HFO3T123WFUK HFO3T222WGUK HFO3T222WGXUK HFO3T223WGFX HFO3T333DFX HIC3B+26 HIC3B+26UK HIC3C24 HIC3C26WFUK HIO3C16W HIO3C21CW HIO3C22CW HIO3C22W HIO3C22WSCUK HIO3C23WF HIO3C24WCUK HIO3C26WUK HIO3O32W HIO3O32WC HIO3O32WG HIO3O32WGC Itelem HIO3T21WE HIO3T223WGFE HIO3T232WGEU HIO3T232WGEUK HIO3T239WGEU HIO3T239WGEUK HKIO3C21CW HKIO3C22CEW HLD8M126BEU HRFC3C24 HSB7M124BEU HSB7M124XEU HUO3C21WC HUO3C21WCX IBBO3C26X IBBO3C34X IBIO3C26 IBIO3C34 IHFC3B+26X KDSDM82143 LBC3C26FUK LFB4S116XTK LFC3C2660HZ LFC3C26X LFC3C26X60HZ LFD11H133DESK LFD11H133XDESK LFD11M121BEU LFD11M121CXEU LFD11M121OCEU LFD11M121OCXEU LFD11M121OGBXEX LFD11M132EU LFD11M132OCIXEU LFD11M132OCXEU LFD11P123OXEX60HZ LFD11P123XEX LFD11S123OXAUS LFF8B116FR LFF8B116XFR LFF8H121IT LFF8M1137FR LFF8M116CBEX LFF8M116CEX LFF8M116CXEX LFF8M116EU LFF8M116XEU LFF8M116XTK LFF8M121BEU LFF8M121CDESK LFF8M121CEU LFF8M121CFR LFF8M121CSBEU LFF8M121CTK LFF8M121CXDESK LFF8M121CXEU LFF8M121OCFR LFF8M121OCXEU LFF8M121TK LFF8M122AUS LFF8M122XAUS LFF8M124EU LFF8M124SBEU LFF8M124XEU LFF8M132CAUS LFF8M132CXAUS LFF8M132EU LFF8M132FR LFF8M132IXEU LFF8M132OAIT LFF8M132SBEU LFF8M132XEU LFF8M132XFR LFF8P112EX60HZ LFF8P112XEX60HZ LFF8S112EU LFF8S112XAG LFF8S112XEU LFK7M116EX60HZ LFK7M116FR LFK7M116XEX60HZ LFK7M116XFR LFK7M121FR LFK7M121OCEU LFK7M121OCFR LFK7M121XFR LFK7M121XIT LFK7M124AIT LFK7M124EU LFK7M124FR LFK7M124IT LFK7M124XFR LFK7M126X LLD8M121XEU LLD8M132XEU LLD8S111XEU LLD8S112XEU LLK7M121OCXEU LLK7M121XEU LLK7S112XEX LLK7S112XEX60HZ LPEH742X LPEH761X LPEH812AN LPEH812X LPEH823X LPEP832X LSB7B116XEU LSB7M116CXTW60HZ LSB7M116XEU LSB7M121BEU LSB7M121WEU LSB7M121XEU LSFF8M114DE/SK LSFF8M116CEU LSFF8M116CXEU LSFF8M117EU LSFF8M117XEU LSFF8M126UK LSFF9H124CEU LSFF9H124CXEU LSFF9M114CEU LSFF9M114CXEU LSFF9M124CEU LSFF9M124CXEU LSPB7M116XEU LSTB6H124CEU LSTF8M126UK LSTF9B116CEU LSTF9H114CLEU LSTF9H115CEU LSTF9H117CUK LSTF9H124CLEU LSTF9H126CLU LSTF9H126CLUK LSTF9M115CEU LSTF9M116CLEU LSTF9M117CEU LSTF9M124CEU LTB4B116EU LTB4M116EU LTB4M116UK LTB6M116CEX60HZ LTB6M116CTW60HZ LTB6M126UK LTEH012 LTEH112OL LTEH123 LTEH123L LTEH1317 LTEM812 LTEM812L LTEM842 LTES121O LTES121OL LTF11B116EU LTF11H121EU LTF11H132EU LTF11H132LEU LTF11H132OEU LTF11M1137CU LTF11M1137CUK LTF11M1137EU LTF11M1137LEU LTF11M116EU LTF11M116OCEU LTF11M121CUK LTF11M121EU LTF11M121OEU LTF11M121OLEU LTF11M121OUK LTF11M1246CL LTF11M1246CLUK LTF11M126EU LTF11M132CEU LTF11M132CUK LTF11P123EU LTF11S111EU LTF11S111OEU LTF11S112AG LTF11S112EU LTF11S112LEU LTF11S112OUK LTF11T123EU LTF8B116EU LTF8M121CUK LTF8M124EU LUF8M132XEU OBBOSUPERECOX OBIOSUPERECO OBKBC3C26FX OBKFC3C26F OBKIC3C26F OBKUC3C26FX OBUOSUPERECOX OWFC2C26 OWFC3C26 OWFC3C26X OWFE2B18X OWFE2C28X RBC3B+26X RBC3C24X RBO3C34X RBOEDITION50X RCBC3C26X RCIC3C26 RCIO3C34 RFC3B+26 RFC3C24 RIC3C24X RIOEDITION50 RSFC3B26 RSFC3B26X RSIC3B26 RUC3B+26X RUC3C24X RUO3C34X RUOEDITION50X SIUF22111G SIUF22111K SIUF22111P SIUF32120K SIUF32120P SIUF32120X SIUF32121X WBC3B18X WBC3C24P WBC3C24PB WBC3C24PX WBC3C26 WBC3C26B WBC3C26PFX WBC3C26PX WBC3C26X WBO3O32PI WBO3O33DLX WBO3P23PLI WBO3T123PF WBO3T123PFB WBO3T123PFX WBO3T3236PX WBO3T332PX WBO3T333DFI WCBO3T123PFI WCIC3B16 WCIC3C26PE WCIO3O32PE WCIO3P23PEL WCIO3T1236PE WCIO3T123PEF WCIO3T321PE WCIO3T321PSE WCIO3T333DEF WDBC3C24PX WEIC3C26F WFC3B+26 WFC3B+26X WFC3B16 WFC3B16X WFC3B18 WFC3C16XIS WFC3C22P WFC3C22PX WFC3C22PXCN WFC3C23PF WFC3C23PFX WFC3C24P WFC3C24PF WFC3C24PFX WFC3C24PUK WFC3C24PX WFC3C24PXUK WFC3C25F WFC3C25FX WFC3C26 WFC3C2660HZ WFC3C26F WFC3C26FUK WFC3C26FX WFC3C26FXUK WFC3C26P WFC3C26PFXIS WFC3C26PX WFC3C26UK WFC3C26X WFC3C26X60HZ WFE2B16 WFE2B16X WFE2B17 WFE2B17X WFO3C236X WFO3O32P WFO3O32PUK WFO3O32PX WFO3O33DA WFO3O33DL Pieces-tout-electromenager.com WFO3O33DLX WFO3O33DX WFO3P23PLX WFO3P33DLUK WFO3P33DLXUK WFO3S23XAUS WFO3T121PX WFO3T121X WFO3T122PGX WFO3T1236PX WFO3T1236PXSA WFO3T1236X WFO3T123PF WFO3T123PFX WFO3T123PL60HZ WFO3T123PLX60HZ WFO3T132X WFO3T222 WFO3T2236PX WFO3T2236PXIS WFO3T321P WFO3T3236P WFO3T3236PUK WFO3T3236PXUK WFO3T333DLX60HZ WIC3B+26 WIC3B16 WIC3C22ESK WIC3C22P WIC3C23PEF WIC3C23PEFUK WIC3C23PF WIC3C24PE WIC3C24PSE WIC3C24PSFE WIC3C26 WIC3C26F WIC3C26P WIC3C26PF WIC3C26UK WIC3T123PFE WIC3T224PFG WIE2B16 WIO3C236E WIO3O33DE WIO3O33DEL WIO3O33DELUK WIO3O33DLG WIO3P23PL WIO3T121P WIO3T122PS WIO3T1236P WIO3T1236PEUK WIO3T123PEF WIO3T123PEFUK WIO3T133DEL WIO3T133DLES WIO3T223PFGE WIO3T321P WIO3T3236 WIO3T332P WKBC3C24PB WKBC3C24PX WKBO3T123PF WKBO3T123PFB WKCIO3P23PEL WKCIO3T123PEF WKFO3O32PX WKIC3C24PE WKIC3C26 WKIO3P24PEL WKIO3T1236P WRBC3C24P WRBC3C24PX WRCIO3T123PEF WRFC3C26 WRFC3C26X WRFE2B16 WRFE2B16X WRIC3B+26 WRIC3C24PE WRIC3C26 WRIC3C26P WRIC3C26PF WRUC3C22 WSIC3B16 WUC3B16 WUC3C22 WUC3C24F WUC3C24P WUC3C24PX WUC3C26 WUC3C26F WUC3C26X WUC3T123PF WUC3T123PFX WUE2B16 WUE2B16X WUIC3C26 WUO3O32P WUO3O32PX WUO3O32PXCN WUO3O33D WUO3O33DX WUO3P23PL WUO3P23PLX WUO3T222L WUO3T222LX WUO3T321 WUO3T321X
